CableIQ Qualification Tester

Copper qualification tester troubleshoots and qualifies Ethernet network cabling speed (10/100/1000/VoIP).
  • Qualifies - Tests if your existing Ethernet network cabling has the bandwidth to support voice, 10/100, VoIP or Gigabit Ethernet
  • Troubleshoots - shows why existing Ethernet network cabling cannot support the network's bandwidth requirement (e.g. crosstalk at 11 meters)
  • Discovers - detects what's at the end of any Ethernet network cable and displays device configuration (speed/duplex/pairing)
  • Identifies unused switch ports that can be reallocated
  • Graphically maps wiring configuration and shows distance to faults with Intelligent Wiremap

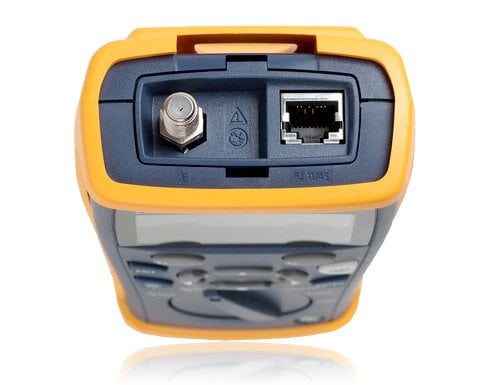

  • Tests all copper cabling media: twisted-pair, coax, and audio cabling
View Product
Demo
Select Your
Right Tool
Free Product Offer View Video
Talk to an Expert Where to Buy



Overview

The network tech's vision into cabling bandwidth
CableIQ qualification tester is the first cabling bandwidth tester for network technicians. This Ethernet network cable tester gives even the most novice tech the vision to see what speeds existing cabling can support, quickly isolate cabling from network problems, and discover what is at the far end of any cable. That means network techs can close trouble tickets faster, reduce on-call time, and save money by better utilizing their existing infrastructure.

Reduce escalated problems by as much as 30%
CableIQ qualification tester's powerful network troubleshooting capability and intuitive interface enable your frontline technicians to identify and troubleshoot a wider range of problems within your network infrastructure. Is the port active? Are the duplex settings matched? Is it a network problem or a Ethernet cable problem? Can the Ethernet cable support the required network bandwidth? CableIQ network cable tester is the only Ethernet cable tester that can answer all these questions before trouble tickets are escalated to the next level reducing problem escalation by up to 30%.

"I had sporadic and unusual customer calls that would crop up every few months on a particular link. After reviewing my case logs for several months I started to notice that this link seemed to have issues more often than other links. There were reports of packet loss and other transient symptoms. In a moment of down-time I was able to bring my Fluke Tester down to the link in question and it passed the first two times I ran the test, but it failed on the third. Problem isolated, cable replaced. Thanks Fluke!"
Eric P.
Cisco Systems
Raleigh, NC US

The network tech's vision into cabling bandwidth
CableIQ qualification tester is the first cabling bandwidth tester for network technicians. This Ethernet network cable tester gives even the most novice tech the vision to see what speeds existing cabling can support, quickly isolate cabling from network problems, and discover what is at the far end of any cable. That means network techs can close trouble tickets faster, reduce on-call time, and save money by better utilizing their existing infrastructure.

Reduce escalated problems by as much as 30%
CableIQ qualification tester's powerful network troubleshooting capability and intuitive interface enable your frontline technicians to identify and troubleshoot a wider range of problems within your network infrastructure. Is the port active? Are the duplex settings matched? Is it a network problem or a Ethernet cable problem? Can the Ethernet cable support the required network bandwidth? CableIQ network cable tester is the only Ethernet cable tester that can answer all these questions before trouble tickets are escalated to the next level reducing problem escalation by up to 30%.



Features

Bandwidth Qualification

When you deploy Voice over IP (VoIP) or Gigabit Ethernet, you want to make sure that the existing cabling will support the bandwidth requirements of your new equipment. Your cabling was certified, but moves adds and changes have rendered many links incapable of running desired speeds. CableIQ quickly reveals whether a link, including patch cords, is qualified for voice, 10/100BASE-T, VoIP, or Gig. Knowing your cabling's bandwidth capabilities before upgrading can prevent countless hours of future downtime and labor hours wasted on unnecessary troubleshooting.


See what speeds your existing cabling can support.


CableIQ's four-second Autotest clearly indicates with a check mark which speeds and applications the tested cable can run.

Cable Troubleshooting

Plug into any cable, patch panel, or wall jack and see both the cable details (length/wiremap) and far-end device details (speed/duplex settings) at once. A series of both cable and network test functions help you isolate connectivity problems. For instance, if Discover mode shows duplex settings are matched but the problem persists, run Autotest to see if the cabling can support the required bandwidth. If a link is not qualified, CableIQ provides detailed information on the nature and location of cabling performance faults such as crosstalk or large impedance changes. With CableIQ your techs can close trouble tickets faster by cutting cable troubleshooting time in half.

Cable Troubleshooting
Troubleshoot cabling faults in half the time.



This screen shot represents a cabling link that did not qualify for 1000BASE-T because of a connection fault at 4.1 meters.

Infrastructure Discovery

Free up 10% or more of your switch ports

CableIQ's Discover mode shows you exactly what's at the far end of any cable. At the switch, test each cable one at a time. You can quickly see whether the cable is open at the far end, or is connected to a PC. Or use CableIQ's hub blink feature from the workstation to flash the corresponding switch port LED. You may be surprised at how many unused ports you can free up and redeploy using CableIQ.

Determine where installed cables are routed, all from one location.

Attach remote ID's in different locations, then perform multiple cable tests from the distribution center or wiring closet. CableIQ provides the wiremap, pair lengths, distance to fault, and remote ID number of each tested cabling link.

Intelligent Wiremap

Intelligent wiremap tests for length, shorts, split pairs, or opens and displays with an intuitive graphical interface where a fault is located.




CableIQ's Intelligent Wiremap shows pin 6 open at far end of tested cable (130 ft/34 meters).

IntelliTone Technology

Locate cables and wires with superior accuracy

CableIQ supports IntelliTone digital toning by:

  • Finding cables easier and tracing with better accuracy than any other tool on the market
  • Toning and tracing safely on a live network
  • Providing two digital tones and four analog tones
  • Featuring IntelliTone cable mapping; after tracing, use the IntelliTone Pro Probe 200 to verify wiremap

Easy-to-use

Empower frontline techs with an easy-to-use-tool

Intuitive user interface and graphical display guides user with little or no training required.

  • Rotary knob makes learning easy and operation simple you always know what test mode is selected
  • Portable, lightweight, rugged ergonomic design for easy field use
  • Four AA batteries - Long lasting battery life for several weeks of testing
  • Remote adapter doubles as a protective endcap.

Customer quote: "I handed CableIQ to our level III techs, they turned the unit on and began testing within two minutes of reviewing the various available selections."
--Telecommunications Analyst

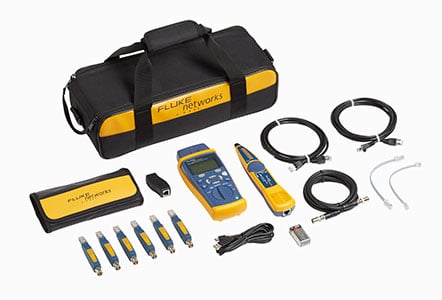

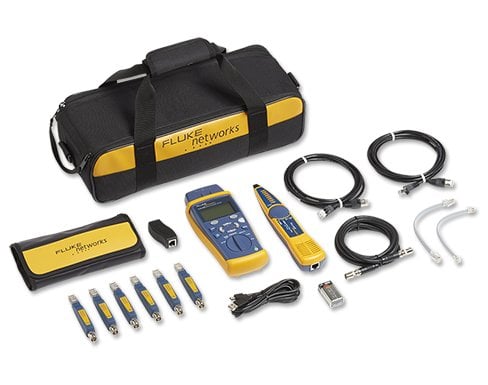

CableIQ Kit Choices

To maximize the value of your CableIQ ownership, choose one of our specialized kits. Each kit is tailored for qualification testing in specific work environments. Read on for detailed descriptions and a convenient comparison chart.

CableIQ Service Kit
The CableIQ Service Kit provides the most powerful combination of cable and network test capabilities. With the breakthrough technologies built into CableIQ, LinkRunner, and IntelliTone, network trouble tickets can be closed faster than ever. First use LinkRunner to verify network connectivity and proper speed/duplex settings of connected devices (e.g. switch ports and PC NICs). Once the network devices have been verified, then use CableIQ to qualify the cabling link. If the cable does not qualify for the desired network speed (10/100/VoIP/Gig), CableIQ’s qualification test can be used to locate and troubleshoot performance faults (e.g. crosstalk or impedance faults). Before closing the trouble ticket, use CableIQ Reporter software to document completion of the job.




CIQ-KIT, CableIQ Advanced IT Kit

The CableIQ Advanced IT Kit is designed to maximize the efficiency of any cable qualification job. Use the included IntelliTone 200 Probe to find cables quickly and definitively, even on active networks. Use the included six smart cable IDs to perform a high volume of qualification tests in a short period of time. Each smart ID has the capability to perform a simple wiremap test or a full qualification test. Up to seven qualification tests can be performed without returning to the patch panel. The rugged carry case can be used to easily transport tools from one job to another.





CIQ-KRQ, CableIQ Residential Qualifier Kit

The CableIQ Residential Qualifier Kit is designed for residential installers who need to document that cabling systems were installed properly and will perform reliably. It quickly qualifies home cabling networks to support voice, VoIP, 10/100/1000 Ethernet, and CATV. With included adapters, it replaces multiple tools for testing and troubleshooting all voice, data, audio/video, coax, and security wiring. Included CableIQ Reporter software allows installers to begin generating professional test reports immediately.





What is Qualification?

Qualification is a new category of testers designed to meet the emerging needs of network technicians who need to upgrade to higher network speeds as well as troubleshoot connectivity problems. Qualification testers, like Fluke Networks new CableIQ Qualification Tester, determines if an existing cabling link can or can not support certain network speeds and technologies. This differs from certification testers, like the DTX CableAnalyzer, which guarantees cabling installations comply with TIA/ISO performance standards and basic verification testers, like the MicroScanner Pro, which tests if the cable is connected correctly.

Qualification testers allow network technicians to perform a series of troubleshooting steps to better isolate cabling from network problems. For example, a first step in troubleshooting a network connectivity problem might be to check the speed and duplex settings of connected devices. If the tester shows the settings are matched, but the problem persists, a qualification test can be performed. Performing a qualification test will allow the technician to identify whether insufficient cabling bandwidth is the cause of the problem. Knowing your cabling's bandwidth capability allows you to close trouble tickets faster and helps ensure seamless upgrades to higher network speeds.

Choosing the right tool for the job

When to use a qualification tester: If you are a network technician, and need to see whether the existing cabling will support your 1000BASE-T network, a qualification tool is the right choice. If you need to troubleshoot connectivity problems and isolate cabling problems from network problems, then qualification is the perfect solution. If you have an existing network and are doing small adds, moves, and changes, or are setting up a temporary network and just need to qualify it for a specific network technology, a qualification tool is a good option.

When to use a certification tester: If you're a commercial installer or network owner who needs to prove that all cabling has been installed correctly, and meets TIA or ISO link specifications, you must certify it. If you are in a troubleshooting environment, and need to show unequivocally that the link under test is failing category 5e or 6 performance requirements according to TIA or ISO standards, your only choice is a certification tool. If you have a mixture of fiber and copper cabling, and often need to test both, cable certification tools do that best.

To receive the support and financial security of a manufacturer's warranty, certification to TIA/ISO standards is your only option. Anything else makes the installer liable for the performance of the installation which can be quite costly. For example, a large 1000 link installation could represent a $100,000 (USD) project, which can be a hefty liability if manufacturer warranty is not obtained.

When to use a verification tool: Verification tools are typically used by any technician who pulls and terminates cable or performs basic moves, adds and changes. These tools are used as a first line of defense in finding connection and wire-pairing faults.



Models & Accessories


Models
Model Number/Name Description
CIQ-VOIP

VoIP Enterprise Service Kit – Includes the CableIQ Advanced IT Kit (CIQ-KIT) and Nettool Series II inline tester with VoIP testing(NTS2-VOIP). See Photo


* This SKU has been discontinued but product support will continue through May 5, 2017.

CIQ-VOIP Gold Support:
GLD-CIQ1 year of Gold Support for one CableIQ mainframe
GLD3-CIQ3 years of Gold Support for one CableIQ mainframe
CIQ-SVC

CableIQ Service Kit includes CableIQ Qualification Tester, six CableIQ Remote Identifiers, CableIQ Reporter software CD, RJ45-RJ45 shielded patch cords (2), USB cable, coax “F” push-on cable, RJ45/RJ11 universal coupler, LinkRunner Network Multimeter, LinkRunner main wiremap adapter, Intellitone Digital Probe 200, test accessory soft pouch, owners CD and quick start guide, packaged in a rugged carrying case; one (1) 9V and six (6) AA batteries included. See Photo


*This SKU has been discontinued but product support will continue through September 23, 2017

CIQ-SVC Gold Support:
GLD-CIQ1 year of Gold Support for one CableIQ mainframe
GLD3-CIQ3 years of Gold Support for one CableIQ mainframe
CIQ-KIT
CableIQ Advanced IT Kit Includes CableIQ main unit with remote adapter, CableIQ Reporter software CD, IntelliTone 200 Digital Probe, Remote IDs #2-7, (2) RJ45-RJ45 patch cord, USB cable, coax 'F' push-on adapter, 75-ohm coax patch cord, RJ45/11 universal coupler, RJ11-RJ11 patch cord, owners CD and quick start guide, (4) AA batteries, test accessory soft pouch, hard carry case. See Photo
CIQ-KIT Gold Support:
GLD-CIQ1 year of Gold Support for one CableIQ mainframe
GLD3-CIQ3 years of Gold Support for one CableIQ mainframe
CIQ-FTKSFP

Copper and Fiber Technician’s Kit – Includes the CableIQ (CIQ-KIT) and SimpliFiber Pro (FTK1000) Fiber Test Kit. See Photo

CIQ-FTKSFP Gold Support:
GLD-CIQ1 year of Gold Support for one CableIQ mainframe
GLD-SFPRO 1 year of Gold Support for SimpliFiber Pro Source or Meter: Models - SFSINGLEMODE2, SFPOWERMETER, SFMULTIMODESOURCE and SFSINGLEMODESOURCE
GLD3-CIQ3 years of Gold Support for one CableIQ mainframe
GLD3-SFPRO 3 years of Gold Support for SimpliFiber Pro Source or Meter: Models - SFSINGLEMODE2, SFPOWERMETER, SFMULTIMODESOURCE and SFSINGLEMODESOURCE
CIQ-100
CableIQ Qualification Tester Includes CableIQ with remote adapter, CableIQ Reporter software CD, (2) RJ45-RJ45 patch cord, USB cable, coax 'F' push-on adapter, owners CD and quick start guide, (4) AA batteries, soft carry case
CIQ-100 Gold Support:
GLD-CIQ1 year of Gold Support for one CableIQ mainframe
GLD3-CIQ3 years of Gold Support for one CableIQ mainframe
CIQ-GSV2

CableIQ Gigabit Service Kit Includes: CableIQ Qualification Tester, LinkRunner AT 1000, IntelliTone Pro 200 Probe, CableIQ Remote Identifiers #1-7 and deluxe carrying case. See Photo

CIQ-GSV2 Gold Support:
GLD-CIQ1 year of Gold Support for one CableIQ mainframe
GLD-LRAT1 year of Gold Support for one LinkRunner AT
GLD3-CIQ3 years of Gold Support for one CableIQ mainframe
GLD3-LRAT3 years of Gold Support for one LinkRunner AT
LRAT2-CIQ-GSV

LinkRunner AT 2000/CableIQ Gigabit Service Kit Includes: LinkRunner AT 2000, CableIQ Qualification Tester, IntelliTone Pro 200 Probe, CableIQ Remote Identifiers #1-7 and deluxe carrying case. See Photo

LRAT2-CIQ-GSV Gold Support:
GLD-LRAT1 year of Gold Support for one LinkRunner AT
GLD-CIQ1 year of Gold Support for one CableIQ mainframe
GLD3-LRAT3 years of Gold Support for one LinkRunner AT
GLD3-CIQ3 years of Gold Support for one CableIQ mainframe

Accessories
Model Number/Name Description
CIQ-CIT
CableIQ IT Hard Carrying Case
CIQ-COAX
CableIQ Coax Adapter Kit includes F-connector, BNC and RCA connectors
CIQ-IDK24
CableIQ Remote Identifier Kit includes remote identifier numbers 2-4
CIQ-IDK57
CableIQ Remote Identifier Kit includes remote identifier numbers 5-7
CIQ-RJA
RJ45/11 Modular Adapter
CIQ-SPKR
CableIQ Speaker Wire Adapter
CIQ-WM
CableIQ Main Wiremap Adapter (replacement part for lost or damaged unit)
CLIP-SET
Clip Set includes RJ45 to 8-clip test lead
MT-8200-63A
IntelliTone 200 Probe Includes: IntelliTone 200 Probe, RJ11 and RJ 45 patch cables, lanyard, owners CD and quick start guide, and 9 volt battery
