DSX CableAnalyzer™ Series

Accelerates every step of the copper certification process

  • Versiv™ modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
  • Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards
  • ProjX™ system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly
  • Taptive™ user interface simplifies set-up, and eliminates errors
  • Analyze test results and create professional test reports using LinkWare™ management software
  • Graphically displays the source of failures including crosstalk, return loss and shield faults for faster troubleshooting
  • Intertek Verified to TIA Level 2G – the most stringent accuracy requirement
  • Endorsed by cabling vendors worldwide
  • Built in Alien Crosstalk testing capability
  • Compatible with Linkware™ Live. Linkware Live enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare™ PC Cable Test Management Software.

See Authorized Rental Partners

Category 8 Testing
Buy One. Get One
Product Configurator
Request a Demo
Talk to an Expert Where to Buy


Overview

The DSX CableAnalyzer Series copper test solution enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you’ll be. Unfortunately, there are a lot of things that slow the process down – setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand.

As part of the Versiv cabling certification product family, the DSX CableAnalyzer Series provides accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It’s not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.

Announcing Cat 8 Support for the DSX Family

The DSX-8000 is the industry’s first true Cat 8 field tester.

  • 2 GHz Permanent Link and Channel adapters
  • Cat 8 cabling manufacturer endorsed
  • Independently verified to meet Cat 8 (Level 2G) accuracy requirements
  • Tests screen continuity along the path of the cabling as required for Level 2G testers


Features

Comparing the DSX-8000 and DSX-5000

The DSX CableAnalyzer Series family is based on two modules: the DSX-5000 and DSX-8000. The DSX-5000 certifies twisted pair Cat 5e, 6, 6A and Class FA cabling with limits up to 1000 MHz. The DSX-8000 certifies twisted pair Cat 5e, 6, 6A, 8 and Class I/II cabling with limits up to 2000 MHz.

  Copper Certification
  DSX-8000 CableAnalyzer™ DSX-5000 CableAnalyzer™
Category 6A / Class EA test time 8 seconds 10 seconds
Category 8 / Class I/II test time 15 seconds
HDTDX/HDTDR diagnostic test times ≈ 3 seconds ≈ 3 seconds
Internal memory ≈ 5,000 Cat 8 with plots
≈ 12,000 Cat 6A with plots
≈ 12,000 Cat 6A with plots
Level V Accuracy (1 GHz)
Level VI/2G Accuracy (2 GHz)
Resistance Unbalance measurement
Shield integrity check
TCL measurement
ELTCTL measurement
CDNEXT measurement
CMRL measurement
Built in Alien XTalk module
Channel Adapter 2 GHz Range 1 GHz Range

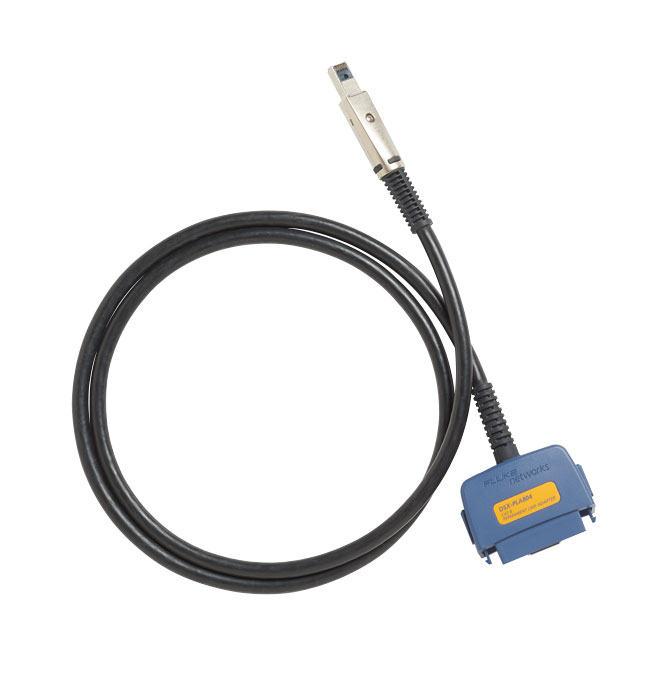

Permanent Link Adapter 2 GHz Range 1 GHz Range
Optional Accessories
Patch cord adapters Category 5e, 6 and 6A patch cord Category 5e, 6 and 6A patch cord
Coax Adapter
M12 Adapter
TERA Adapter Coming Summer 2017
GG45 Adapter Coming Summer 2017
Unique Features

Unique Features:

  • Versiv enables users to accomplish more than ever before with a cable tester, by accelerating every step of the testing process
  • LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even location from any smart device
  • ProjX™ management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
  • Taptive™ user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
  • LinkWare PC management software provides unmatched analysis of test results and professional test reports
  • The DSX reduces the time required to fix cabling faults with dedicated diagnostics, a simple test that locates the problem
Standards

Standards:

  • Compliant with ANSI/TIA-1152-A Level 2G and proposed standard IEC 61935-1 Ed. 5 Level VI field tester accuracy requirements to 2000 MHz
  • Supports the complete suite of Resistance Unbalance standards needed for Power over Ethernet (PoE) –IEEE 802.3bt, ANSI/TIA/EIA-568, ISO/IEC 11801 series documents
  • TCL and ELTCTL measurements compliant to IEC 61935-1-1 (Draft)
  • Screen continuity along path of cabling
Performance

Performance:

  • Eight second Cat 6A test time contributes to the fastest way to gain certification
  • Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting
  • Manage up to 12,000 Cat 6A test results with full graphics
  • Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
  • Over 1 billion links reported on LinkWare PC management software
ProjX™ Management System Manages Complex Jobs with Ease

Manage up to 12,000 Cat 6A test results with full graphics

Managing the testing of multiple jobs with multiple teams, testers, and requirements is time consuming and a source of errors. Increasingly larger jobs make project organization more important than ever. The new ProjX management system on the DSX CableAnalyzer Series provides individual project files for all job specific details to be saved under a simple name, eliminating the need to re-enter job specific details after starting a project. This minimizes set-up errors or lost files when switching from one job to another or utilizing multiple testers on a single job. In addition, it provides test results by cable ID, merges any changes without duplicates and defaults to the last copper or fiber module installed. ProjX management system provides real time status to completion on each job with a 0-100% scale and gives the operator the option to isolate any test requiring a second look and helps to assure nothing is overlooked. The "Fix Later" selection creates a punch list or automatic to do list for correcting any workmanship issues. ProjX enables project managers and crew leaders to be truly efficient.





Project Setup screen

Project menu screen shows
percent complete per job.
Arrow
Project Menu Screen

Specific screen shows up to the minute project details.
Arrow
Project Test Setup Screen

Set-up or view test limits, and
testing attributes.







Taptive™ User Interface Simplifies Set Up, Eliminates Errors and Speeds Troubleshooting

Capacitive touchscreen allows quick tester setup and supports all standards

Taptive user interface is easy enough for even the newest technician to perform tests across multiple media types and testing requirements. The capacitive Taptive user interface makes all jobs easily accessible from the menu screen. Touch the job you’re working on and the large display confirms the test that needs to be performed, animated instructions simplify setting the configuration making correct testing assured.



Taptive User Interface Screen
Simple Set up.



Performs with Unsurpassed Speed

Eight second Cat 6A test time and the fastest way to submit your certification results

No tester offers so much speed for so many tests. Complete copper certification to Cat 6A in 8 seconds or certify two fibers at two wavelengths in just 3 seconds. Endorsements by cabling vendors worldwide assure that Versiv is the fastest way to project completion and system acceptance. Quickly get a Pass or Fail result and easily review individual test parameters by value or drill into specific area on a graph.

Passing Test Results

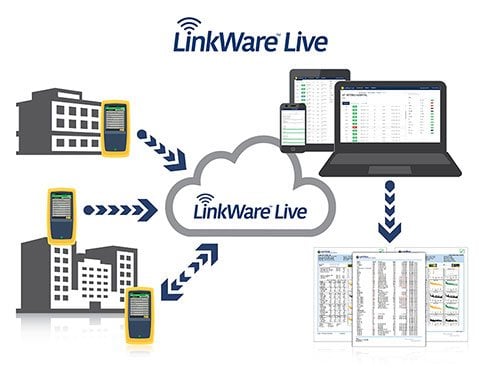

LinkWare™ Live Test Results Management Service

LinkWare Live is a cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device.  With LinkWare Live, you can

  • Keep track of every test on every job.  Get an overview of every project from any smart device. Drill down to each individual test. Instantly receive notification of incorrect test setting or cable IDs.
  • Get it right the first time. Define cable IDs and test settings from your PC or tablet. Then send them to the testers or Brother printers at the jobsite for mistake-free testing and labeling.
  • Keep your testers up to date. Standards can change without notice, and an out-of-date test report can mean hours of re-testing. LinkWare Live automatically ensures your testers are running the latest.
  • Stop wasting time and gas driving testers back to the office. Upload your test results straight from the job site to LinkWare Live over Wi-Fi. Then download them automatically to the right job for fast report generation with LinkWare PC.
  • Avoid Project Delays. Track the last used location and monitor the status of all testers to ensure they are always calibrated and running the latest firmware*
  • Supports all Versiv models: DSX CableAnalyzer Series, CertiFiber Pro, OptiFiber Pro, and the FI-7000.

*See supported countries.

LinkWare Live Test Result Screen for St. Peter Hospital     LinkWare Live Test Result Dashboard Screen

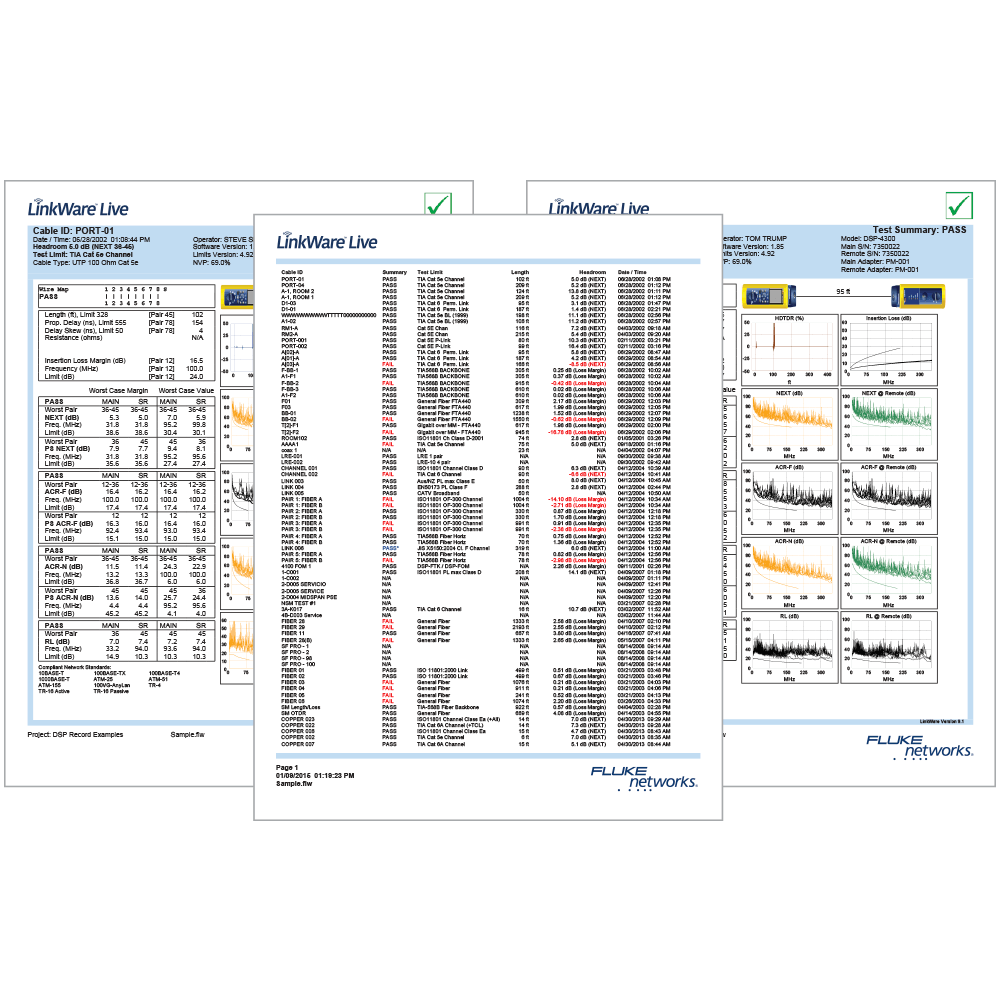

LinkWare™ PC Cable Test Management Software

Leveraging the popular and multi-featured LinkWare PC management software application, DSX CableAnalyzer Series users can easily access the ProjX management system data, generate reports, and upgrade the software in their testers. Project Managers have full capabilities to manage workflow and consolidate test results. Users can provide the finishing touch by adding their company logo to the report and offer it unaltered to their customers for system acceptance purposes. Keep your business tools simple, no matter which Fluke Networks copper or fiber tester you are using, LinkWare PC is the software package that reports it all.

Now with LinkWare PC stats, the new automated statistical report option, you can move above and beyond the page-per-link report and see your entire cabling infrastructure. It analyzes and transforms LinkWare PC test results data into charts and diagrams that reveal your cabling plant performance; this report summarizes your entire cabling infrastructure in a compact, graphical format that makes it easy to verify margins and to spot anomalies.

LinkWare™ PC Cable Test Management Software Screen   LinkWare Stats Screen
New versions of LinkWare PC are always backwards compatible with previous versions, so you can stay current and always integrate tests from different testers into one test report.   LinkWare Stats summarizes all project data



Versiv Platform is Ready for Today's and Tomorrow's Jobs

Electrically centered plug design is compliant with TIA Level 2G and IEC Level VI accuracy requirements to 2000 MHz with a future-ready design to support all hardware upgrades

The DSX CableAnalyzer Series enables cable testing and certification for network deployments up to 40 Gigabit Ethernet – whether it is an existing Cat 5e, 6, 6A, 8 or Class I/II cabling system, the DSX tests to all industry standards. The electrically centered test plug results in the Level 2G/VI accuracy required to support field testing to Cat 8 / Class I/II, 2000 MHz. The DSX exceeds the IEC Level VI and TIA Level 2G specifications assuring you of higher confidence in results over the full frequency range. Higher performance cabling systems like Cat 8 require more precise measurement to ensure they are providing the noise immunity required by 25G and 40G applications. Additionally, complex Alien Crosstalk link-to-link certification is simplified by integrating the measurement capability into each copper module up to 40GBASE-T testing.

The DSX is the first field tester to support balance measurements including Transverse Conversion Loss (TCL) and Equal Level Transverse Conversion Transfer Loss (ELTCTL). TCL and ELTCTL are important measurements found in the cabling standards. They define a minimum performance for balance, a key parameter to help determine noise immunity. Industrial network owners/operators are especially interested in this property due to the higher level of electromagnetic interference (EMI) within the industrial environment.

Fluke Networks' DSX CableAnalyzer Series has obtained Intertek (ETL) verification in accordance with the ANSI/TIA-1152-A specification for Level 2G test equipment. (Report on file.)

TLC and ELTCTL Graph View
Troubleshoot Like an Expert

Graphically displays the source of failures including crosstalk and distance to shield faults for faster troubleshooting

The DSX reduces the time required to fix cabling faults with dedicated diagnostics, a simple 1 button test runs all tests and saves all data. The graphical results screen allows you to look down the cable to see exactly where any cross talk, return loss or shield faults are located on any given link. Previous testers had frequency limits of their diagnostic capabilities of up to 250 MHz only, but the DSX CableAnalyzer Series removes this limitation. This common view is easily interpreted by novice and expert users alike to isolate and act on any failed results quickly and is stored with the test result for remote analysis.

HTDTX shows the far end connection is clearly the issue

High Definition Time Domain Crosstalk (HTDTX) shows the far end connection in clearly the issue
  Feature Simple Diagnostics
Features simple diagnostics based decades
of Fluke Networks troubleshooting experience.

Shield continuity historically is a direct current (DC) measurement with no distance to fault available. Other testers run a simple resistance test to verify that the shield has continuity. These tests have been shown to be inaccurate, sometime confusing a ground path as shield continuity and not correctly identifying a break in the shield. Other testers may tell you there is a break in a shield, but not pinpoint the exact location giving no indication of where to start rework. The DSX CableAnalyzer Series is the first field tester to report distance to any shield integrity issues, reporting the true status of the screen continuity. This is especially important in\ datacenters and Cat 8 installations where screen continuity is critical to maintaining alien crosstalk performance of screened cabling.

Wiremap Shows Distance to fault, break and short
Wiremap - shows distance to fault, break and short


Models & Accessories


Models
Model Number/Name Description
DSX-8000 CableAnalyzer Models

The DSX-8000 models are available in 2 versions: wireless and non-wireless. The Wireless version of the DSX-8000 includes a WiFi adapter for LinkWare Live and is available in the following countries. The non-wireless version does not contain the WiFi adapter and is available for countries where the WiFi adapter is not certified or for customers who do not wish to receive the Wi-Fi adapter.

DSX-8000
DSX-8000-W

1 Versiv Mainframe & Remote, (2) DSX-8000 CableAnalyzer Modules, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class I Channel Adapters, (2) Headsets, (2) HandStrap, (2) Shoulder Straps, Carry Case, USB Interface Cable, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, (2) AxTalk Terminators, WiFi Adapter, Statement of Calibration and Getting Started Guide. See Photo

DSX-8000-W Gold Support:
GLD-DSX-8000

1 Yr Gold Support for the DSX-8000-W or DSX-8000 includes Versiv Mainframe, Smart Remote and (2) DSX-8000 Copper Modules

GLD3-DSX-8000

3 Yr Gold Support for the DSX-8000-W or DSX-8000 includes Versiv Mainframe, Smart Remote and (2) DSX-8000 Copper Modules

DSX-8000-W/GLD

DSX-8000-W with 1 year Gold Support (available in the United States and Europe only. Europe order: DSX-8000-W INT/GLD).

DSX-8000

Same configuration as the DSX-8000-W without the WiFi adapter

DSX-8000 Gold Support:
GLD-DSX-8000

1 Yr Gold Support for the DSX-8000-W or DSX-8000 includes Versiv Mainframe, Smart Remote and (2) DSX-8000 Copper Modules

GLD3-DSX-8000

3 Yr Gold Support for the DSX-8000-W or DSX-8000 includes Versiv Mainframe, Smart Remote and (2) DSX-8000 Copper Modules

DSX-8000-OI
DSX-8000OI-W
1 Versiv Mainframe & Remote, (2) DSX-8000 CableAnalyzer modules, OptiFiber Quad OTDR module, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class I Channel Adapters, (2) Headsets, (2) HandStraps, (2) Shoulder Straps, Carry Case, USB Interface Cable, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, (2) AxTalk Terminators, (2) Quick Clean Cleaners (1.25/2.50 mm), SC/SC Simplex adapters, 2 SC/LC Multimode Launch Cables—50 µm, 2 SC/LC Singlemode Launch Cable—9 µm, USB Fiber Inspection Video Probe with 4 Tips, LC/LC Simplex Adapter, WiFi Adapter, Statement of Calibration and Getting Started Guides. See Photo
DSX-8000OI-W Gold Support:
GLD-DSX-8000OI

1 Yr Gold Support for the DSX-8000OI-W or DSX-8000OI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, OTDR Quad module and Fiber inspection

GLD3-DSX-8000OI

3 Yr Gold Support for the DSX-8000OI-W or DSX-8000OI includes Versiv Mainframe, Smart Remote and (2) DSX-8000 Copper Modules, OTDR Quad module and Fiber inspection

DSX-8000OI-W/GLD

DSX-8000OI-W with 1 year Gold Support (available in the United States and Europe only. Europe order: DSX-8000OIWINT/GLD).

DSX-8000OI
Same configuration as the DSX-8000OI-W without the WiFi adapter.
DSX-8000OI Gold Support:
GLD-DSX-8000OI

1 Yr Gold Support for the DSX-8000OI-W or DSX-8000OI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, OTDR Quad module and Fiber inspection

GLD3-DSX-8000OI

3 Yr Gold Support for the DSX-8000OI-W or DSX-8000OI includes Versiv Mainframe, Smart Remote and (2) DSX-8000 Copper Modules, OTDR Quad module and Fiber inspection

DSX-8000QI
DSX-8000QI-W
1 Versiv Mainframe & Remote, (2) DSX-8000 CableAnalyzer Modules, (2) CertiFiber Quad OLTS Modules, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class I Channel Adapters, (2) Headsets, (2) Handstraps, (2) Shoulder Straps, Carry Case, USB Interface Cable, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, (2) AxTalk Terminators, USB Video Inspection Probe w/ 4 Tips, (2) Quick Clean Cleaners (1.25/2.50 mm), (2) LC/LC Simplex Adapters, SC/LC EF-Compliant MM TRC Kit 50 µm, SC/LC SM TRC Kit, TRC Carry Case, WiFi Adapter, Statement of Calibration and Getting Started Guides. See Photo
DSX-8000QI-W Gold Support:
GLD-DSX-8000QI

1 Yr Gold Support for the DSX-8000QI-W or DSX-8000QI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules and Fiber inspection

GLD3-DSX-8000QI

3 Yr Gold Support for the DSX-8000QI-W or DSX-8000QI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules and Fiber inspection

DSX-8000QI-W/GLD

DSX-8000QI-W with 1 year Gold Support (available in the United States and Europe only. Europe order: DSX-8000QIWINT/GLD).

DSX-8000QI
Same configuration as the DSX-8000QI-W without the WiFi adapter.
DSX-8000QI Gold Support:
GLD-DSX-8000QI

1 Yr Gold Support for the DSX-8000QI-W or DSX-8000QI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules and Fiber inspection

GLD3-DSX-8000QI

3 Yr Gold Support for the DSX-8000QI-W or DSX-8000QI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules and Fiber inspection

DSX-8000QOI
DSX-8000QOI-W
1 Versiv Mainframe & Remote, (2) DSX-8000 CableAnalyzer modules, (2) CertiFiber Quad OLTS modules, OptiFiber Quad OTDR module, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class 1 Channel Adapters, (2) Headsets, (2) HandStraps, (2) Shoulder Straps, Hard sided Carry Case, USB Interface Cable, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, (2) AxTalk Terminators, (2) Quick Clean Cleaners (1.25/2.50 mm), SC/SC Simplex adapters, 2 SC/LC Multimode Launch Cables—50 µm, 2 SC/LC Singlemode Launch Cable—9 µm, USB Fiber Inspection Video Probe with 4 Tips, (2) LC/LC Simplex Adapter, SC/LC EF-Compliant MM TRC Kit 50 µm, SC/LC SM TRC Kit, TRC Carry Case, WIFI Adapter, Statement of Calibration and Getting Started Guides. See Photo
DSX-8000QOI-W Gold Support:
GLD-DSX-8000QOI

1 Yr Gold Support for the DSX-8000QOI-W or DSX-8000QOI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules, OTDR Quad module and Fiber inspection

GLD3-DSX-8000QOI

3 Yr Gold Support for the DSX-8000QOI-W or DSX-8000QOI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules, OTDR Quad module and Fiber inspection

DSX-8000QOI-W/GLD

DSX-8000QOI-W with 1 year Gold Support (available in the United States and Europe only. Europe order: DSX-8000QOIWINTGLD).

DSX-8000QOI
Same configuration as the DSX-8000QOI-W without the WiFi adapter.
DSX-8000QOI Gold Support:
GLD-DSX-8000QOI

1 Yr Gold Support for the DSX-8000QOI-W or DSX-8000QOI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules, OTDR Quad module and Fiber inspection

GLD3-DSX-8000QOI

3 Yr Gold Support for the DSX-8000QOI-W or DSX-8000QOI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules, OTDR Quad module and Fiber inspection

DSX-8000-PRO
DSX-8000-PRO-W
Versiv Professional Kit contains the DSX-8000 CableAnalyzer, CertiFiber Pro, OptiFiber Pro, Fiber Inspection and a full complement of product accessories including a WiFi adapter. Click here for a detail list of contents.
See Photos:
DSX CableAnalyzer
CertiFiber Pro OLTS
OptiFiber Pro OTDR
Fiber inspection and cleaning
Accessories



DSX-8000-PRO-W Gold Support:
GLD-DSX-8000PRO

1 Yr Gold Support for the DSX-8000-PRO-W or DSX-8000-PRO-W includes (2) Versiv Mainframes, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules, OTDR Quad module and Fiber inspection

GLD3-DSX-8000PRO

3 Yr Gold Support for the DSX-8000-PRO-W or DSX-8000-PRO-W includes (2) Versiv Mainframes, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules, OTDR Quad module and Fiber inspection

DSX-8000-PRO-W/GLD

DSX-8000-PRO-W with 1 year Gold Support (available in the United States and Europe only. Europe order: DSX-8000PROWINT/GD).

DSX-8000-PRO
Same configuration as the DSX-8000-PRO-W without the WiFi adapter.
DSX-8000-PRO Gold Support:
GLD-DSX-8000PRO

1 Yr Gold Support for the DSX-8000-PRO-W or DSX-8000-PRO-W includes (2) Versiv Mainframes, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules, OTDR Quad module and Fiber inspection

GLD3-DSX-8000PRO

3 Yr Gold Support for the DSX-8000-PRO-W or DSX-8000-PRO-W includes (2) Versiv Mainframes, (2) DSX-8000 Copper Modules, (2) OLTS Quad modules, OTDR Quad module and Fiber inspection

DSX-8000-MI
DSX-8000MI-W
1 Versiv Mainframe & Remote, (2) DSX-8000 CableAnalyzer Modules, (2) CertiFiber Multimode OLTS Modules, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class I Channel Adapters, (2) Headsets, (2) HandStraps, (2) Shoulder Straps, Carrying Case, USB Interface Cable, Versiv Open Source Software CD, (2) Universal Couplers, (2) AxTalk Terminators, USB Video Inspection Probe w/ 4 Tips, (2) Quick Clean Cleaners (1.25/2.50 mm), (2) LC/LC Simplex Adapters, SC/LC EF-Compliant MM TRC Kit 50 µm, TRC Carry Case, WiFi Adapter, Statement of Calibration and Getting Started Guides. See Photo
DSX-8000MI-W Gold Support:
GLD-DSX-8000MI

1 Yr Gold Support for the DSX-8000MI-W & DSX-8000MI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Multimode modules and Fiber inspection

GLD3-DSX-8000MI

3 Yr Gold Support for the DSX-8000MI-W & DSX-8000MI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Multimode modules and Fiber inspection

DSX-8000MI-W/GLD

DSX-8000MI-W with 1 year Gold Support (available in the United States and Europe only. Europe order: DSX-8000MIWINT/GLD).

DSX-8000MI

Same configuration as the DSX-8000MI-W without the WiFi adapter.

DSX-8000MI Gold Support:
GLD-DSX-8000MI

1 Yr Gold Support for the DSX-8000MI-W & DSX-8000MI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Multimode modules and Fiber inspection

GLD3-DSX-8000MI

3 Yr Gold Support for the DSX-8000MI-W & DSX-8000MI includes Versiv Mainframe, Smart Remote, (2) DSX-8000 Copper Modules, (2) OLTS Multimode modules and Fiber inspection

DSX-8000 Add-on Kits
DSX-8000-ADD
(2) DSX-8000 CableAnalyzer Modules, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class I Channel Adapters, (2) Headsets, (2) HandStraps, (2) Shoulder Straps, Carry Case, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, (2) AxTalk Terminators, Statement of Calibration and Getting Started Guide See Photo
DSX-8000-ADD Gold Support:
GLD-DSX-8-ADD

1 Yr Gold Support for the DSX-8000-ADD includes (2) DSX-8000 Copper Modules

GLD3-DSX-8-ADD

3 Yr Gold Support for the DSX-8000-ADD includes (2) DSX-8000 Copper Modules

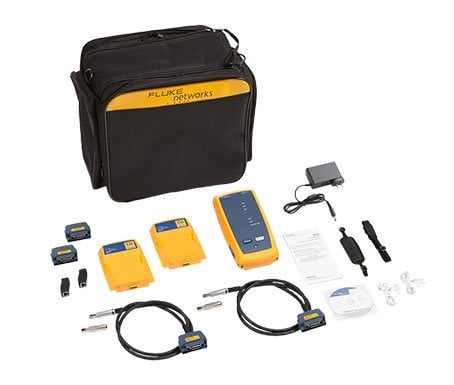

DSX-8000-ADD-R
1 Versiv Remote, (2) DSX-8000 CableAnalyzer Modules, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class I Channel Adapters, (2) Headsets, (2) HandStraps, (2) Shoulder Straps, Carry Case, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, (2) AxTalk Terminators, Statement of Calibration and Getting Started Guide See Photo.
DSX-8000-ADD-R Gold Support:
GLD-DSX-8-ADD-R

1 Yr Gold Support for the DSX-8000-ADD-R includes Versiv Smart Remote, (2) DSX-8000 Copper Modules

GLD3-DSX-8-ADD-R

3 Yr Gold Support for the DSX-8000-ADD-R includes Versiv Smart Remote, (2) DSX-8000 Copper Modules

DSX-8-CFP-Q-ADD/R
1 Versiv Remote, (2) DSX-8000 CableAnalyzer modules, (2) CertiFiber Quad OLTS Modules, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class I Channel Adapters, (2) Headsets, (2) HandStraps, (2) Shoulder Straps, Carry Case, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, (2) AxTalk Terminators, (2) LC/LC Simplex Adapters, SC/LC EF-compliant MM TRC Kit 50 µm, SC/LC SM TRC Kit, TRC Carry Case, Statement of Calibration and Getting Started Guide. See Photo
DSX-8-CFP-Q-ADD/R Gold Support:
GLD-DSX8-CFPQADD/R

1 Yr Gold Support for the DSX-8-CFP-Q-ADD/R includes Versiv Smart Remote, (2) DSX-8000 Copper Modules and (2) OLTS Quad modules

GLD3-DSX8-CFPQADDR

3 Yr Gold Support for the DSX-8-CFP-Q-ADD/R includes Versiv Smart Remote, (2) DSX-8000 Copper Modules and (2) OLTS Quad modules

DSX-8000-OFP-Q-ADD
(2) DSX-8000 CableAnalyzer Modules, OptiFiber Quad OTDR Module, Set of Cat 8/Class I Permanent Link Adapters, Set of Cat 8/Class I Channel Adapters, (2) Headsets, Carry case, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, (2) AxTalk Terminators, 2 SC/LC Multimode Launch Cables—50 µm, 2 SC/LC Singlemode Launch Cable—9 µm, (2) OTDR Hanging straps and magnets, SC/SC Simplex Adapter, LC/LC Simplex Adapter, Statement of Calibration and Getting Started Guides. See Photo
DSX-8000-OFP-Q-ADD Gold Support:
GLD-DSX8-OFPQ-ADD

1 Yr Gold Support for the DSX-8000-OFP-Q-ADD includes (2) DSX-8000 Copper Modules and OTDR Quad module

GLD3-DSX8-OFPQ-ADD

3 Yr Gold Support for the DSX-8000-OFP-Q-ADD includes (2) DSX-8000 Copper Modules and OTDR Quad module

DSX-5000

Some of the DSX-5000 models are available in 2 versions: wireless and non-wireless. The Wireless version includes a WiFi adapter for LinkWare Live and is available in the following countries. The non-wireless version does not contain the WiFi adapter and is available for countries where the WiFi adapter is not certified or for customers who do not wish to receive the Wi-Fi adapter.

DSX-5000-W

1 Versiv Mainframe & Remote, (2) DSX-5000 CableAnalyzer Modules, Set of Cat 6A/Class EA Permanent Link Adapters, Set of Cat 6A/Class EA Channel Adapters, (2) Headsets, (2) HandStrap, (2) Shoulder Straps, Carry Case, USB Interface Cable, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, WiFi adapter, Statement of Calibration and Getting Started Guide. See Photo

DSX-5000-W Gold Support:
GLD-DSX-50001 year of Gold Support for the DSX-5000 CableAnalyzer includes Versiv Mainframe,Smart Remote and (2) DSX Copper modules
GLD3-DSX-50003 years of Gold Support for the DSX-5000 CableAnalyzer includes Versiv Mainframe,Smart Remote and (2) DSX Copper modules
DSX-5000-W/GLD

DSX-5000 with 1 year of Gold Support (available in the United States and Europe. Europe order: DSX-5000-W INT/GLD).

DSX-5000

1 Versiv Mainframe & Remote, (2) DSX-5000 CableAnalyzer Modules, Set of Cat 6A/Class EA Permanent Link Adapters, Set of Cat 6A/Class EA Channel Adapters, (2) Headsets, (2) HandStrap, (2) Shoulder Straps, Carry Case, USB Interface Cable, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, Statement of Calibration and Getting Started Guide. See Photo

DSX-5000 Gold Support:
GLD-DSX-50001 year of Gold Support for the DSX-5000 CableAnalyzer includes Versiv Mainframe,Smart Remote and (2) DSX Copper modules
GLD3-DSX-50003 years of Gold Support for the DSX-5000 CableAnalyzer includes Versiv Mainframe,Smart Remote and (2) DSX Copper modules
DSX-5000QI
DSX-5000Qi-W

1 Versiv Mainframe & Remote, (2) DSX-5000 CableAnalyzer Modules, (2) CertiFiber Quad OLTS Modules, Set of Cat 6A/Class EA Permanent Link Adapters, Set of Cat 6A/Class EA Channel Adapters, (2) Headsets, (2) Handstraps, (2) Shoulder Straps, Carry Case, USB Interface Cable, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, USB Video Inspection Probe w/ 4 Tips, (2) Quick Clean Cleaners (1.25/2.50 mm), (2) LC/LC Simplex Adapters, SC/LC EF-Compliant MM TRC Kit 50 µm, SC/LC SM TRC Kit, TRC Carry Case, WiFi adapter, Statement of Calibration and Getting Started Guides.See Photo

DSX-5000Qi-W Gold Support:
GLD-DSX-5000Qi1 year of Gold Support for DSX-5000Qi includes Versiv Mainframe, Smart Remote, (2) DSX Copper modules, (2) OLTS Quad Modules and Fiber Inspection
GLD3-DSX-5000Qi3 years of Gold Support for DSX-5000Qi includes Versiv Mainframe, Smart Remote, (2) DSX Copper modules, (2) OLTS Quad Modules and Fiber Inspection
DSX-5000Qi

1 Versiv Mainframe & Remote, (2) DSX-5000 CableAnalyzer Modules, (2) CertiFiber Quad OLTS Modules, Set of Cat 6A/Class EA Permanent Link Adapters, Set of Cat 6A/Class EA Channel Adapters, (2) Headsets, (2) Handstraps, (2) Shoulder Straps, Carry Case, USB Interface Cable, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, USB Video Inspection Probe w/ 4 Tips, (2) Quick Clean Cleaners (1.25/2.50 mm), (2) LC/LC Simplex Adapters, SC/LC EF-Compliant MM TRC Kit 50 µm, SC/LC SM TRC Kit, TRC Carry Case, Statement of Calibration and Getting Started Guides.See Photo

DSX-5000Qi Gold Support:
GLD-DSX-5000Qi1 year of Gold Support for DSX-5000Qi includes Versiv Mainframe, Smart Remote, (2) DSX Copper modules, (2) OLTS Quad Modules and Fiber Inspection
GLD3-DSX-5000Qi3 years of Gold Support for DSX-5000Qi includes Versiv Mainframe, Smart Remote, (2) DSX Copper modules, (2) OLTS Quad Modules and Fiber Inspection
DSX-5000Qi-W/GLD
DSX-5000Qi with 1 year of Gold Support (available in the United States and Europe. Europe order: DSX-5000QI-W-INT/GLD)
DSX-5000 Add-on Kits
DSX-ADD

(2) DSX-5000 CableAnalyzer Modules, Set of Cat 6A/Class EA Permanent Link Adapters, Set of Cat 6A/Class EA Channel Adapters, (2) Headsets, (2) HandStraps, (2) Shoulder Straps, Carry Case, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, Statement of Calibration and Getting Started Guide See Photo

DSX-ADD Gold Support:
GLD-DSX-ADD1 year of Gold Support coverage for the DSX-ADD which includes (2) DSX-5000 Copper modules
GLD3-DSX-ADD3 years of Gold Support coverage for the DSX-ADD which includes (2) DSX-5000 Copper modules
DSX-ADD-R

1 Versiv Remote, (2) DSX-5000 CableAnalyzer Modules, Set of Cat 6A/Class EA Permanent Link Adapters, Set of Cat 6A/Class EA Channel Adapters, (2) Headsets, (2) HandStraps, (2) Shoulder Straps, Carry Case, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, Statement of Calibration and Getting Started Guide See Photo

DSX-ADD-R Gold Support:
GLD-DSX-ADD-R1 year of Gold Support coverage for the DSX-ADD-R which includes (2) DSX-5000 Copper modules and Versiv Remote
GLD3-DSX-ADD-R3 years of Gold Support coverage for the DSX-ADD-R which includes (2) DSX-5000 Copper modules and Versiv Remote
DSX-CFP-Q-ADD-R

1 Versiv Remote, (2) DSX-5000 CableAnalyzer modules, (2) CertiFiber Quad OLTS Modules, Set of Cat 6A/Class EA Permanent Link Adapters, Set of Cat 6A/Class EA Channel Adapters, (2) Headsets, (2) HandStraps, (2) Shoulder Straps, Large Carry Case, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, (2) LC/LC Simplex Adapters, SC/LC EF-compliant MM TRC Kit 50 µm, SC/LC SM TRC Kit, TRC Carry Case, Statement of Calibration and Getting Started Guide See Photo

DSX-CFP-Q-ADD-R Gold Support:
GLD-DSX-CFP-Q-ADDR1 year of Gold Support coverage for the DSX-CFP-Q-ADD-R which includes (2) DSX-5000 Copper modules, Quad OLTS modules and Versiv Remote
GLD3-DSX-CFP-Q-ADD3 years of Gold Support coverage for the DSX-CFP-Q-ADD-R which includes (2) DSX-5000 Copper modules, (2) Quad OLTS modules and Versiv Remote
DSX-OFP-Q-ADD

(2) DSX-5000 CableAnalyzer Modules, OptiFiber Quad OTDR Module, Set of Cat 6A/Class EA Permanent Link Adapters, Set of Cat 6A/Class EA Channel Adapters, (2) Headsets, Large Carry case, Versiv Open Source Software CD, (2) AC Chargers, (2) Universal Couplers, SC/SC Simplex Adapters, 2 SC/LC Multimode Launch Cables—50 µm, 2 SC/LC Singlemode Launch Cable—9 µm, (2) OTDR Hanging straps and magnets, SC/SC Simplex Adapter, LC/LC Simplex Adapter, Statement of Calibration and Getting Started Guides See Photo

DSX-OFP-Q-ADD Gold Support:
GLD-DSX-OFP-Q-ADD1 year of Gold Support coverage for the DSX-OFP-Q-ADD which includes (1) DSX-5000 Copper modules, Quad OTDR module and Versiv Remote
GLD3-DSX-OFP-Q-ADD3 years of Gold Support coverage for the DSX-OFP-Q-ADD which includes (2) DSX-5000 Copper modules, Quad OTDR module and Versiv Remote

Accessories
Model Number/Name Description
DSX-8000 Accessories
DSX-PLA804S
DSX-8000 Cat 8/Class I PLA Set. See Photo
DSX-CHA804S
DSX-8000 Cat 8/Class I CHA Set. See Photo
DSX-PLA804SPRP

DSX-PLA804 Plug replacement parts. This item includes two contact blocks of the 8-pin modular plug.

DSX-REFCAL2G

DSX-8000 2GHz Set-Ref Module

DSX-5000 Accessories
DSX-PLA001

DSX Universal Permanent Link Adapter See Photo

DSX-PLA004S

DSX CAT 6A/CLASS EA PLA SET See Photo

DTX-PLA002PRP

DSX-PLA004 plug replacement parts. This item includes two contact blocks of the 8-pin modular plug

DSX-PLA011S

DSX TERA CAT 7A/CLASS FA PLA SET See Photo

DSX-CHA004S

DSX CAT 6A/CLASS EA CHA SET See Photo

DSX-CHA011S

DSX TERA Cat 7A/CLASS FA CHA SET See Photo

DSX-TERA-KIT
DSX TERA CAT 7A/CLASS FA PLA & CHA KIT
DSX-CHA012S

DSX GG45 CLASS FA CHANNEL ADAPTER SET See Photo

DSX-5000 MOD
1 GHZ DSX Replacement MODULE
DSX-REFMOD
DSX-5000 SET-REF MODULE
Accessories for the DSX 5000/8000 CableAnalyzers
DSX-COAX

DSX COAX ADAPTER SET

DSX-CHA021S

DSX M12 4-POSITION ADAPTER SET See Photo

DSX-CHA003

DSX COAX ADAPTER See Photo

DSX-PC5ES

DSX Patch Cord Test Adapter Set for Category 5e patch cords See Photo

DSX-PC6S

DSX Patch Cord Test Adapter Set for Category 6 patch cords See Photo

DSX-PC6AS
DSX Patch Cord Test Adapter Set for Category 6A patch cords
VERSIV-M
Versiv Main Replacement
VERSIV-RU
Versiv Remote Replacement
VERSIV-CASE3

VERSIV Hardsided Case See Photo

VERSIV-LG-CASE

Versiv Large Carry Case See Photo

VERSIV-SM-CASE

Versiv Small Carry Case. See Photo

VERSIV-BACKPK-STRP

Backpack strap for Versiv Large Case See Photo

PWR-SPLY-30W
30W Power Supply, 15V, 2A with US adapter. See Photo
PWR-SPLY-30W INTL

30W Power Supply, 15V, 2A with US, EU, AU, and UK adapters See Photo

PWR-SPLY-30W SA/IN

30W Power Supply, 15V, 2A with US, South Africa and India adapters See Photo

PWR-SPLY-ADP
EU, AU, UK adapters for 30W power supply. See Photo
PWR-SPLY-ADP-SA

South Africa and India adapters for 30W power supply See Photo

VERSIV-ADP-WIFI

WiFi Adapter for Versiv Mainframe. (Available in the following countries.)

VERSIV-TSET

Versiv Headphones See Photo

VERSIV-BATTERY

Versiv Battery See Photo

VERSIV-STRP

Versiv Strap Kit See Photo

VERSIV-STND
Versiv Demo Stand

Personality Modules
DSP-PM19B
SYSTIMAX® VisiPatch® 360 (T568B) Personality Module
DSP-PM19A
SYSTIMAX® VisiPatch® 360 (T568A) Personality Module
DSP-PM17B
TYCO/AMP 610XC CONNECTOR (T568B) Personality Module
DSP-PM17A
TYCO/AMP 610XC CONNECTOR (T568A) Personality Module
DSP-PM16B
LEVITON 110 (T568B) Personality Module
DSP-PM16A
LEVITON 110 (T568A) Personality Module
DSP-PM15B
TE/ADC/KRONE HIGHBAND (T568B) Personality Module
DSP-PM15A
TE/ADC/KRONE HIGHBAND (T568A) Personality Module
DSP-PM14B
TE/ADC/KRONE ULTIM8 (T568B) Personality Module
DSP-PM14A
TE/ADC/KRONE ULTIM8 (T568A) Personality Module
DSP-PM13B
SIEMON S210 (T568B) Personality Module
DSP-PM13A
SIEMON S210 (T568A) Personality Module
DSP-PM12B
PANDUIT GIGAPUNCH (T568B) Personality Module
DSP-PM11B
BELDEN GigaBIX (T568B) Personality Module
DSP-PM11A
BELDEN GigaBIX (T568A) Personality Module
DSP-PM10B
SYSTIMAX® 110 (T568B) Personality Module
DSP-PM10A
SYSTIMAX® 110 (T568A) Personality Module


Specifications



Cable Types
Shielded and unshielded pair LAN cabling TIA Category 3, 4, 5, 5e, 6, 6A, 8: 100 Ω
ISO/IEC Class C, D, E, EA, F, FA and I/II: 100 Ω and 120 Ω
Standard Link Interface Adapters
Permanent link adapters Plug type: shielded RJ45
Optional Plug type: Tera (for DSX-5000 only, DSX-8000 version available summer 2017)
Channel Adapters Jack type: shielded RJ45
Optional Jack type: Tera (for DSX-5000 only, DSX-8000 version available summer 2017)
Test Standards
TIA Category 3, 4, 5, 5e, 6, 6A, 8 per TIA 568-C.2
ISO/IEC Class C and D, E, EA, F, FA and I/II certification per ISO/IEC
Maximum frequency DSX-8000: 2000 MHz;
DSX-5000: 1000 MHz
General Specifications
Speed of Autotest DSX-8000: Full 2-way Autotest of Category 5e or 6/Class D or E: 7 seconds. Full 2-way Autotest of Category 6A/Class EA: 8 seconds. Full 2-way Autotest of Category 8: 16 seconds
DSX-5000: Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds. Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Supported test parameters (The selected test standard determines the test parameters and the frequency range of the tests) Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), NEXT, Attenuation-to-crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (ELFEXT), Power Sum NEXT, Power Sum ACR-N, Power Sum Alien Near End Xtalk (PS ANEXT), Power Sum Alien Attenuation Xtalk Ratio Far End (PS AACR-F)
Input protection Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage
Display 5.7 in LCD display with a projected capacitance touchscreen
Case High impact plastic with shock absorbing overmold
Dimensions Main Versiv unit with DSX module and battery installed: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight Main Versiv unit with DSX module and battery installed: 3 lbs, 5oz (1.28 kg)
Main unit and remote: Lithium ion battery pack, 7.2 V
Typical battery life: 8 hours
Charge time* Tester off: 4 hours to charge from 10 % capacity to 90 % capacity.
Languages supported English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration Service center calibration period is 1 year
Environmental Specifications
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -14°F to +140°F (-10°C to +60°C)
Operating relative humidity 0 % to 90 %, 32°F to 95 °F (0°C to 35°C)
0 % to 70 %, 95°F to 113 °F (35°C to 45°C)
Vibration Random, 2 g, 5 Hz-500 Hz
Shock 1 m drop test with and without module and adapter
Safety CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Operating altitude 13,123 ft (4,000 m)
10,500 ft (3,200 m) with ac adapter
EMC EN 61326-1
Performance Specifications **
DSX-8000 Category 8 test modes (or lower link categories) ANSI/TIA-1152 Level 2G
Class I/II test modes Proposed standard IEC 61935-1 Ed. 5 Level VI
DSX-5000 Category 6A/Class EA test modes (or lower link categories) Exceed Level IIIe requirements of TIA 1152 and Level IV of IEC 61935-1.
Class FA test modes Exceed Level V requirements as in the draft 4th edition of IEC 61935-1.
Length of Twisted Pair Cabling1
  Without Remote With Remote
Range 800 m (2600 ft) 150 m (490 ft)
Resolution 0.1 m or 1 ft 0.1 m or 1 ft
Accuracy ± (0.3 m + 2 %); 0 m to 150 m
± (0.3 m + 4 %); 150 m to 800 m
± (0.3 m + 2 %)
Propagation Delay
  Without Remote With Remote
Range 4000 ns 750 ns
Resolution 1 ns 1 ns
Accuracy ± (2 ns + 2 %); 0 ns to 750 ns
± (2 ns + 4 %); 750 ns to 4000 ns
± (2 ns + 2 %)
Delay Skew
Range 0 ns to 100 ns
Resolution 1 ns
Accuracy ± 10 ns
DC Loop Resistance Test
Range 0 Ω to 540 Ω
Resolution 0.1 Ω
Accuracy ± (1 Ω + 1 %)
Overload recovery time Less than 10 minutes to rated accuracy following an overvoltage. Referencing is required after repeated or prolonged overvoltage.





Documents



Brochures

Title/Description Download
Versiv Installation Contractor Brochure
Download PDF
1.92 MB
Unlock Icon


Data Sheets

Title/Description Download
DSX CableAnalyzer Datasheet
Download PDF
Unlock Icon
DSX Coax Datasheet
Download PDF
Unlock Icon
DSX M12 Datasheet_en
DSX M12 Channel Adapters
Download PDF
Unlock Icon


Catalogs

Title/Description Download
Fluke Networks Solution Catalog
The Guide for selecting and ordering Fluke Network Solutions and Products
Download PDF
5.58 MB
Unlock Icon
Fluke Networks 4 Page Catalog
Download PDF
1.08 MB
Unlock Icon


Application Notes

Title/Description Download
Application Note: Why Calibrate Your Cable Certifier?
Download PDF
Unlock Icon
Copper Certification Testing Best Practices Pocket Guide
Download PDF
7.2 MB
Unlock Icon
Copper Clad Aluminum (CCA) Cables
Download PDF
Unlock Icon
Statement of Memory Volatility for the Versiv Cabling Certification Product Family
This document describes how to completely clear the product's memory.
Download PDF
420.97 KB
Unlock Icon


White Papers

Title/Description Download
DC Resistance Unbalance Testing: Easy, Low-cost Insurance For Your Poe Systems
Download PDF
Unlock Icon
Encircled Flux - Solving the Puzzle of Repeatable Fiber Loss Testing
Download PDF
Unlock Icon
Whitepaper: Cabling Certification State of Industry
Download PDF
382.91 KB
Unlock Icon
Whitepaper: How To Find Profits In New Places
Download PDF
Unlock Icon
Category 8 Cable Will Play A Major Role In 25g & 40g Data Center Ethernet
“How the TIA and IEC committees created new standards for Category 8 cable testing devices” By James Withey, Senior Standards & Research Engineer, Fluke Networks.
Download PDF
Unlock Icon
Fluke Networks Shield Integrity
Download PDF
Unlock Icon


Flyers

Title/Description Download
DSX Cableanalyzer Series Gold Value Flyer
Download PDF
3.55 MB
Unlock Icon
Top 5 Reasons to Upgrade to Versiv
Download PDF
1.45 MB
Unlock Icon
Versiv Gold Membership Benefits - Overview
Versiv Gold Membership Benefits - Overview
Download PDF
3.62 MB
Unlock Icon
Versiv and DTX CableAnalyzer Gold Membership Benefits - Overview (EU)
Download PDF
1013.21 KB
Unlock Icon


Case Studies


ITM's Fibre & Equipment Engineer reviews their newly purchased Fluke Networks Versiv

ITM, a UK-based leading independent provider of specialist ICT infrastructure solutions and services, applies best of breed technology, in-house expertise and innovation to deliver standards compliant solutions and services to clients throughout the UK, Europe and the rest of the World. Stuart Ayres, ITM Fibre & Equipment Engineer, reviewed the results of their investment in twenty Versiv Cabling Certification Systems.

After using the Versiv System for a few months it clearly offers several advantages when compared to the previous generation of test equipment. Not only is the Versiv System faster, the modular design and online connectivity dramatically reduces our engineers travel time as they no longer need to call into the office to have test results downloaded or firmware updated.

During the few months that we have been using the new equipment I have identified the following advantages that translate into productivity gains for both ITM and our Customers:

  • Greatly reduced test cycle times for both copper and fibre.
  • Easy and fast movement of test data from site to office enables better project progress reporting, quicker sign-off and invoicing.
  • Ability to remotely configure and control the test units.
  • Simplified logistics, we now only have to maintain one fleet of modular multi-purpose test equipment.

Read full story ...




PowerCom Empowers Technicians with LinkWare™ Live to Increase Team Efficiency - Case Study

By leveraging Versiv™ DSX-5000, CertiFiber® and LinkWare™ Live, PowerCom has significantly reduced the time and effort needed to test the systems and provide results to their customers.

Challenge: PowerCOM installs and services a wide range of information and communication systems including; voice, data, Wi-Fi, security and monitoring at a variety of both indoor and outdoor locations. With over 80% of employees working in the field on multiple client sites, delivery of test results to the PowerCOM office and/or client is often challenging. Historically, the process to set up test equipment and compile results has been manual and time intensive for both field and administrative staff. Additionally, some customers desired more frequent and periodic delivery of detailed test results, rather than only upon project completion. To address these issues, PowerCOM required a solution that could help their technicians and administrative staff be more efficient, as well as readily and more easily share data with their customers.

Results: By leveraging Versiv™ DSX-5000, CertiFiber® Pro and LinkWare™ Live, PowerCom has significantly reduced the time and effort needed to test the systems and provide results to their customers. Instead of requiring the field technicians to set-up test parameters and commute to the office to deliver/review the test reports, these tasks can be done remotely through the cloud. By leveraging LinkWare Live, PowerCom technicians can complete jobs faster, ensure test accuracy and reduce the potential for rework.

Read full story ...




Extreme Packets Case Study
Extreme Packets with LinkWare Live

Challenge:
Extreme Packets completes cabling projects large and small, providing computer network installation services to universities, businesses, and commercial real estate construction. Since its beginning more than 15 years ago, the company has developed deep expertise in cabling, while keeping long-term client relationships. As it has grown and looked to maintain a competitive edge, Extreme Packets saw an opportunity to excel in two key areas: completing jobs more quickly and establishing a simpler way of managing cable test results for its customers

Results:
Upgrading to the Versiv™ DSX-5000 and LinkWare™ Live has dramatically reduced the time it takes to get to systems acceptance. Extreme Packets has reduced its individual cable certification times by 79%, and with LinkWare Live, the company can share test results with clients as soon as they have been uploaded, saving time and allowing clients to track testing progress. Using Versiv and LinkWare Live, Extreme Packets has significantly reduced overall project completion time by as much as 70%. In many cases, a project that would normally take 12 hours to complete with their old testers now takes as little as four hours to finish.

Read full story ...




LanTroVision Adopts the Versiv™ DSX-5000 CableAnalyzer™ - Case Study

Migrating from the Fluke Networks DTX-1800 CableAnalyzer to the new Versiv DSX-5000 product line was caused less by a challenge and more by an opportunity to adopt a next-generation technology that leveled the playing field against shrinking budgets and project schedules.

Challenge: LanTroVision is a Singapore-based structured cabling and IT network installation company with subsidiaries and alliance partnerships across Asia, Australia, Africa, Europe, and South America. With annual revenue exceeding $106.8 million USD (S$133.54 million), LanTroVision is focused on continual growth by providing evolving product and service lines that meet or exceed customer expectations. The company has established a legacy of providing best-in-class network and cable infrastructure services, but maintaining this legacy grows more-and-more challenging as customer expectations increase despite shrinking budgets and project schedules. The company is constantly asked to do more with less.

Results: Migrating from the Fluke Networks DTX-1800 CableAnalyzer to the new Versiv DSX-5000 product line was caused less by a challenge and more by an opportunity to adopt a next-generation technology that leveled the playing field against shrinking budgets and project schedules. The Versiv DSX-5000 helps LanTroVision complete cable installation jobs to customer specifications in half the time. It allows them to test all kinds of cables used on the job and maintain maximum uptime in customer networks, all with little-to-no technician training. In addition, the DTX and DSX platforms are interoperable, allowing LanTroVision to make the most of their investments and migrate technologies as their budget and schedule allows.

Read full story ...




Redstone Gains a Competitive Advantage with Versiv™ Family Adoption - Case Study
Redstone upgraded its entire testing fleet to the new Versiv platform, including 40 DSX-5000 CableAnalyzer units, many equipped with CertiFiber Pro Optical Loss Test Set (OLTS) modules and Fiber Inspection Cameras. The company also purchased 20 OneTouch™ AT Network Assistant units.

Challenge:Redstone provides structured cabling and intelligent infrastructure management for IT data center design and implementation, and smart building deployments. The company built a reputation for excellence by focusing on service quality and performance above all else. As its reputation grew, so did customer expectations for getting more with less time and budget investment. Redstone continually seeks any advantage possible in meeting these customer demands. Network testing and certification is no exception.

Results: Redstone upgraded its entire testing fleet to the new Versiv platform, including 40 DSX-5000 CableAnalyzer™ units, many equipped with CertiFiber® Pro Optical Loss Test Set (OLTS) modules and Fiber Inspection Cameras. The company also purchased 20 OneTouch™ AT Network Assistant units. Redstone will use these new systems to test installation of more than 250,000 copper links and 25,000 fiber cores each year. Migrating to the Versiv platform saves significant time with each installation, while providing added flexibility through its interchangeable modules for copper and fiber testing.

Read full story ...





Training

Certified Test Technician Training Course

Certified Test Technician TrainingYou need to train and certify your existing employees to stay competitive in the installation and certification of high-speed structured cabling systems. Investing in the Fluke Networks Certified Cabling Test Technician™ (CCTT) training and certification program will not only improve installer skills, but also their effectiveness and productivity on the job in testing, certifying and troubleshooting copper and fiber cabling systems.



Click here for more information on the CCTT program.





DSX-5000 CableAnalyzer™ “Getting Started” Training Videos

New to the DSX-5000 CableAnalyzer™?
Learn the basics of operation, including unboxing, set-up, testing and reporting with our free video training courses.



Click here to access.





Endorsements



Manufacturer’s Endorsements for the DSX CableAnalyzer Series


The Future-ready Versiv copper cabling certification solution — the DSX CableAnalyzer Series — supports testing up to 2 GHz. This extended bandwidth supports TIA Cat 8 and ISO Class I/II links, as well as emerging standards like 40 Gigabit Ethernet over twisted-pair cabling. The Versiv cable certification family also enables you to certify fiber links and do extended troubleshooting. No other tester on the market gives you this kind of future-proof investment while meeting current specifications.

Manufacturers are integral to the testing decisions you make. To support their warranties, your certification tests must be performed with approved tools so you can ensure your customers' complete satisfaction.

Fluke Networks has subjected the DSX CableAnalyzer Series testers to rigorous testing in the labs of leading wiring manufacturers. Read approval letters below by manufacturer.


DSX-8000 CableAnalyzer








Learn more Intertek Verified to TIA Level 2G



DSX-5000 CableAnalyzer

AT & T BELDEN

Brand-Rex CommScope

Corning Datwyler

EuroLAN Excel

Furukawa HCS Cabling Systems

Hubbell HellermannTyton

Legrand LEONI Kerpen

Leviton Metz Connect

Nexans Nippon Seisen

Panduit Prysmian Draka

Rosenberger R & M

Schneider Electric Siemon

Superior Essex TE

Telegartner Fuji
Tsuko

Learn more ETL Verified to IEC Level V




Gold Product Support

3-Year Gold Support for DSX-5000 CableAnalyzer
Gold Support for your DSX-5000 CableAnalyzer™ allows you to make the most of your DSX-5000 CableAnalyzer purchase while ensuring a higher return on your investment. You will minimize your downtime, receive faster trouble resolution and have total access to all support resources.
What do you get with Gold Support for your DSX-5000 CableAnalyzer and Fiber bundles?




Benefits

Standard Warranty

Gold Support

Live technical support with exclusive phone number

FREE Annual Calibration and Factory Refresh

FREE Repair with “first on bench” turnaround service

Loaner Equipment Service*

FREE Accessory Replacements**

Member Only Promotions

Access to Technical Support Team

Web and Email

Web, Email and Phone

Response Time from Technical Support

< 24 Hours

< 2 Hours

Customer Support – Phone and Email

7am-5pm (PST)

24 x 7 x 365

Primary Case Handling

Customer Service

Technical Support

Online training videos, Knowledge Base access, White papers and Best Practice guides

Software and Firmware upgrades

*Available in certain geographies currently
**Applies to accessories in the original product purchase

Annual Calibration and Factory Refresh - ISO 9001 standards compliance requires the unit be calibrated per manufacturer’s recommendations, which is annually for the DSX-5000. Keeping your DSX-5000 CableAnalyzer and Fiber bundles calibrated is critical to ensure accuracy when testing copper and fiber networks. Our calibration processes are ISO-9001 controlled and designed to certify that your DSX-5000 CableAnalyzer and Fiber bundles meet all published specifications. To receive a loaner unit during calibration (available in most regions), we recommend you schedule your appointment 6 weeks in advance of your required calibration date. If a loaner is not required or calibration cannot be scheduled in advance, Gold customers may opt to instead receive a shipping waybill and calibrations will receive priority turnaround. Typical turnaround time for a calibration is 5 working days. Your DSX-5000 and Fiber bundles will be precisely calibrated to factory specifications (calibration certificate provided - calibration traceable with data available for extra charge), repaired as necessary with genuine OEM repair parts, upgraded with all of the latest software and firmware then cleaned and performance verified. In addition, all accessories that came with your DSX-5000 CableAnalyzer and Fiber bundles will be tested and replaced if faulty or defective.

Repairs and loaner equipment - If your DSX-5000 CableAnalyzer and Fiber bundles should fail, we'll deliver a loaner unit via next business day delivery to keep you up and running. We'll repair your DSX-5000 and Fiber bundles and replace defective accessories that came with your unit at no charge, with "first on bench" priority, and return it to you - all shipping paid by Fluke Networks.

Accessory Replacement - Some accessories are essential to testing and certifying cable. If any accessory that comes with your DSX-5000 CableAnalyzer or Fiber bundles are qualified as defective or faulty by our technical assistance center, it will be replaced free of charge. Universal Permanent Link Adapters and Modules are limited to replacement of one set per year, provided they have met the aforementioned criteria.

Access to live 24 x 7 technical support- Extend the expertise of your staff. Gold Support includes priority access to our world-class Technical Assistance Center (TAC). Our centers in Seattle, WA and Eindhoven, NL employ a full staff of highly trained technical experts that are on call, including weekends and through the night, to answer complex troubleshooting questions, including GOLD only services such as: Test set-up and instrument configuration, Fiber testing and reference setting, Test results interpretation, including trace results analysis. Let us help you get the most out of your DSX-5000 CableAnalyzer and Fiber bundles and understand the results you are seeing.

Member Only promotions - Your membership qualifies you for “Members Only” promotions and programs. This includes product discounts, access to reconditioned equipment at special prices and other incredible values.

Ensure that you are getting the most out of your DSX-5000 CableAnalyzer and Fiber bundles with Gold Support Services. Gold Support must be purchased for the DSX-5000 CableAnalyzer and Fiber bundles for complete coverage.
