DSX-602 CableAnalyzer™
Product Highlights
Essential certification of copper, twisted pair structured cabling from Cat 3 / Class C through Cat 6A / Class EA
The DSX-602 provides essential Cat 6A and Class EA Copper Certification featuring 10 second test times and advanced user interface. Manage jobs and testers from any smart device over Wi-Fi with LinkWare™ Live. Features legendary Fluke Networks reliability backed by worldwide support.
- Cat 6A and Class EA Copper Certification
- Includes Channel Measurement Adapters; Optional rugged Permanent Link Adapters with removable test plug available
- 10 second Cat 6A test time
- ProjX™ Management System makes test setup fast and foolproof
- HDTDX and HDTDR diagnostics pinpoint fault location View More >
- Integrates with LinkWare™ Live to manage jobs and testers from any smart device.
- Quickly and easily create professional custom PDF reports with LinkWare™ PC.
PRODUCT NAVIGATION
Overview
The DSX-602 CableAnalyzer™ is the tool for essential certification of copper, twisted pair structured cabling from Cat 3 / Class C through Cat 6A / Class EA featuring speed, and reliability making you more efficient and productive – you can see the results on the bottom line. No other tester will deliver as consistently as the DSX-602. Its gesture-based user interface allows your techs to spend less time interpreting screens and more time testing. 500 MHz frequency range certifies Cat 6A/Class EA cabling for 10 Gigabit Ethernet in just 10 seconds. Advanced diagnostics pinpoint the location of a failure. LinkWare™ Live cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device.
Features
Unique Features
- The DSX-602 enables users to accomplish more than ever before by accelerating every step of the testing process
- LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even location from any smart device
- ProjX™ management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time
- Taptive™ user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels
- LinkWare PC management software provides unmatched analysis of test results and professional test reports
Standards:
- TIA - Category 3, 5, 5e, 6, 6A per TIA 568-C.2 or TIA-1005
- ISO/IEC - Class C and D, E, EA certification per ISO/IEC 11801:2002 and amendments
- IEEE 802.3 - 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T
Performance
- 9 second Cat 6/Class E and 10 second Cat 6A/Class EA test time contributes to the fastest way to submit your certification results
- Graphically displays the source of failures, the DSX-602 HDTDR and HDTDX diagnostics pinpoint fault location
- Manage up to 12,000 Cat 6A test results with full graphics
- Capacitive touchscreen allows quick tester setup with easily selectable cable types, standards and testing parameters
Manage up to 12,000 Cat 6A test results with full graphics
Managing the testing of multiple jobs with multiple teams, testers, and requirements is time consuming and a source of errors. Increasingly larger jobs make project organization more important than ever. The new ProjX management system on the DSX-602 CableAnalyzer provides individual project files for all job specific details to be saved under a simple name, eliminating the need to re-enter job specific details after starting a project. This minimizes set-up errors or lost files when switching from one job to another or utilizing multiple testers on a single job. In addition, it provides test results by cable ID, merges any changes without duplicates and defaults to the last copper or fiber module installed. ProjX management system provides real time status to completion on each job with a 0-100% scale and gives the operator the option to isolate any test requiring a second look and helps to assure nothing is overlooked. The "Fix Later" selection creates a punch list or automatic to do list for correcting any workmanship issues. ProjX enables project managers and crew leaders to be truly efficient.
10 second Cat 6A test time and the fastest way to submit your certification results
No tester offers so much speed for so many tests. Complete copper certification to Cat 6A in 10 seconds. Quickly get a Pass or Fail result and easily review individual test parameters by value or drill into specific area on a graph.
Leveraging the popular and multi-featured LinkWare PC management software application, DSX-602 users can easily access the ProjX management system data, generate reports, and upgrade the software in their testers. Project Managers have full capabilities to manage workflow and consolidate test results. Users can provide the finishing touch by adding their company logo to the report and offer it unaltered to their customers for system acceptance purposes. Keep your business tools simple, no matter which Fluke Networks copper or fiber tester you are using, LinkWare PC is the software package that reports it all.
LinkWare Live is a cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device. With LinkWare Live, you can:
- Keep track of every test on every job. Get an overview of every project from any smart device. Drill down to each individual test. Instantly receive notification of incorrect test setting or cable IDs.
- Get it right the first time. Define cable IDs and test settings from your PC or tablet.
- Keep your testers up to date. Standards can change without notice, and an out-of-date test report can mean hours of re-testing. LinkWare Live automatically ensures your testers are running the latest.
- Stop wasting time and gas driving testers back to the office. Upload your test results straight from the job site to LinkWare Live over Wi-Fi. Then download them automatically to the right job for fast report generation with LinkWare PC.
- Avoid Project Delays. Track the last used location and monitor the status of all testers to ensure they are always calibrated and running the latest firmware*
*See supported countries
|
Feature |
DSX-602 |
Versiv DSX-5000 |
Versiv DSX-8000 |
|
Description |
Essential Cat 6A and Class EA copper tester |
Cat 6A and Class FA copper tester |
Fastest, most accurate Cat 8 and Class I/II copper cable tester |
|
Cat 3 – Cat 6A / Class EA |
X |
X |
X |
|
Class FA |
X |
X |
|
|
Cat 8 / Class I/II |
X |
||
|
Maximum Frequency |
500 MHz |
1000 MHz |
2000 MHz |
|
Autotest Time |
10 sec Class EA/Cat 6A |
10 sec Class EA/Cat 6A |
16 sec Cat 8 / Class I/II |
|
Shield Integrity Test |
X |
X |
X |
|
Internal Memory |
≈ 12,000 Cat 6A with plots |
≈ 12,000 Cat 6A with plots |
≈ 12,000 Cat 6A with plots |
|
Battery Life |
≈ 8 Hours |
≈ 8 Hours |
≈ 8 Hours |
|
Cable Identifier Length |
60 characters |
60 characters |
60 characters |
|
Permanent Link Adapter |
Optional |
X |
X |
|
ProjXTM Project Management |
X |
X |
X |
|
TaptiveTM Gesture-based User Interface |
X |
X |
X |
|
Advanced Fault Info Troubleshooting |
Limited – (HDTDR & HDTDX) |
X |
X |
|
PoE Resistance Unbalance |
X |
X |
|
|
Integrated Alien Crosstalk Capability |
X |
X |
|
|
LinkWareTM Professional Reports |
X |
X |
X |
|
LinkWareTM Live capable |
X |
X |
X |
|
TCL Measurement |
X |
X |
|
|
Coax Adapters |
Optional |
Optional |
Optional |
|
M12 Adapters |
Optional |
Optional |
Optional |
|
Patch Cord Adapters |
Optional |
Optional |
|
|
Fiber – OLTS, OTDR & Inspection |
Optional |
Optional |
|
|
The modular Versiv family Future-ready design supports up to TIA Cat 8 and ISO Class I/II, singlemode and multimode fiber loss and OTDR testing plus inspection. Advanced diagnostics instantly pinpoint the cause and location of cable faults in plain language. Both Versiv copper cable testers provide measurements to support advanced technologies, including Alien Crosstalk for NBASE-T and other applications, and Resistance Unbalance for Power over Ethernet (PoE). |
|||
Models & Accessories
Models
DSX-602 Gold Support

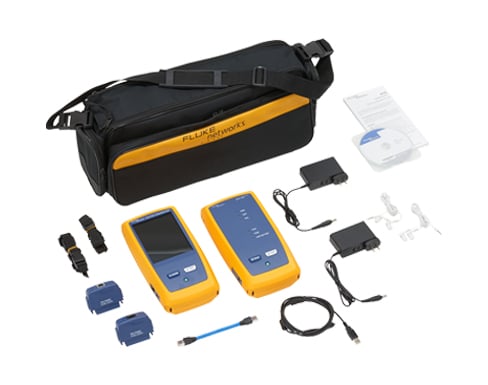

DSX-602 CableAnalyzer Main & Remote, Cat 6A/ Class EA channel adapters (2), 6-inch (15 cm) RJ45 reference patch cord (1), Soft Carrying case, USB cable for PC communications, AC adapters (2) and DSX-602 Getting Started Guide See Photo.
Note: (NOT SOLD in JAPAN)
GLD-DSX-602
1 Yr Gold Support for the DSX-602 & DSX-602-NW
GLD3-DSX-602
3 Yr Gold Support for the DSX-602 & DSX-602-NW
DSX-602-NW Gold Support
Same configuration as the DSX2-602 with integrated Wi-Fi disabled.
Note: (NOT SOLD in JAPAN)
GLD-DSX-602
1 Yr Gold Support for the DSX-602 & DSX-602-NW
GLD3-DSX-602
3 Yr Gold Support for the DSX-602 & DSX-602-NW
DSX-602-PRO Gold Support

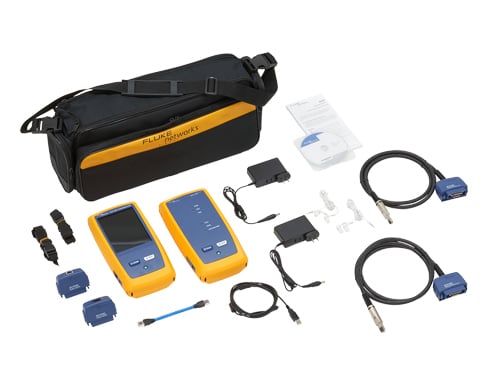

DSX-602 CableAnalyzer Main & Remote, Cat 6A/ Class EA channel adapters (2), 6-inch (15 cm) RJ45 reference patch cord (1), Cat 6A/Class EA Permanent Link Adapters (2), Soft Carrying case, USB cable for PC communications, AC adapters (2) and DSX-602 Getting Started Guide See Photo
GLD-DSX-602-PRO
1 Yr Gold Support for the DSX-602-PRO
GLD3-DSX-602-PRO
3 Yr Gold Support for the DSX-602 PRO
Some of the DSX-602 models are available in 2 versions: wireless and non-wireless. The Wireless version of the DSX-602 includes integrated Wi-Fi for uploading results to LinkWare Live. The integrated Wi-Fi is disabled in the non-wireless version for customers who do not wish to receive Wi-Fi
Specifications
Cable Types
Shielded and unshielded pair LAN cabling
TIA Category 3, 4, 5, 5e, 6, 6A: 100 Ω ISO/IEC Class C, D, E, EA: 100 Ω and 120 Ω
Test Standards
TIA
Category 3, 5, 5e, 6, 6A per ANSI/TIA-568.2-D
ISO/IEC
Class C and D, E, EA certification per ISO/IEC 11801:2002 and amendments
IEEE 802.3
10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T
General Specifications
Speed of Autotest
Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds;
Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Supported test parameters (test standard determines parameters and frequency range reported)
Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), Near End Crosstalk (NEXT), Attenuation-to-Crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power Sum ACR-N
Maximum frequency
500 MHz
Test Result Storage
12,000 Cat 6A with plots
Display
5.7 in LCD display with a projected capacitance touchscreen
Dimensions
Main Unit and Smart Remote: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight
3 lbs (1.36 kg)
Battery
Lithium ion battery pack, 7.2 V
Battery Life
8 hours
Battery Charge Time
4 hours (below 40° C, with tester off)
Languages supported
English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration
Service center calibration period is 1 year
Integrated Wi-Fi
Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)
Environmental Specifications
Operating Temperature
32° F to 113° F (0° C to 45° C)
Storage Temperature
-22° F to +140° F (-30° C to +60° C)
Operating relative humidity (% RH without condensation)
0% to 90%, 32° F to 95° F: (0° C to 35° C)
0% to 70%, 95° F to 113° F: (35° C to 45° C)
Vibration
Random, 2 g, 5 Hz -500 Hz
Shock
1 m drop test with and without module and adapter attached
Safety
CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Altitude
13,123 ft (4,000 m)
10,500 ft (3,200 m) with ac adapter
EMC
EN 61326-1: Portable
