FI-3000 / FI2-7300 FiberInspector™ Ultra Camera
Get a Grip on the Most Efficient, Most Complete Inspection Solution
- Total endface visibility with Live View from full trunk to individual endface
- Integrates with Versiv™ Cabling Certification System and LinkWare™ Reporting Software for simple operation and documentation or with mobile phones for testing and sharing
- Optional automated pass/fail results in seconds
- Multiple Autofocus/Autocentering Camera design for real time imaging
- Rugged, ergonomic design with convenient holster View More >
- Supports one or two rows of 8,12,16 or single UPC or APC connectors.
The FI-3000 FiberInspector Ultra offers an extensive feature set that makes testing MPO fiber trunks, cassettes, array cables easy and efficient. The multiple camera design provides an instant Live View with simple touchscreen gestures to move from full trunk to individual endfaces in real time. Touch “TEST”, and in seconds, you’ll get an automated PASS/FAIL result compliant with IEC 61300-3-35. Store results on your phone and share them through text messages, email or use the industry-leading LinkWare platform to store complete project reports including copper, fiber loss, OTDR, and endface images. Compact, ergonomic design with autofocus makes it comfortable and fast even when you’re testing hundreds of cables or ports.
“A speck of dust that’s invisible to the human eye can cause intermittent errors or even complete failure on a fiber optic connection. That’s why it’s essential that every fiber interconnect – even on cables straight from the factory – be inspected before it’s connected.” - Mike Hughes, VP of Product Management, US Conec, a global leader in the development and supply of high-density optical interconnects.
- Interchangeable tips support one or two rows of 8, 12, 16, or single UPC or APC connectors
- PortBright™ illumination for dark and crowded patch panels
- Protective cover with tether

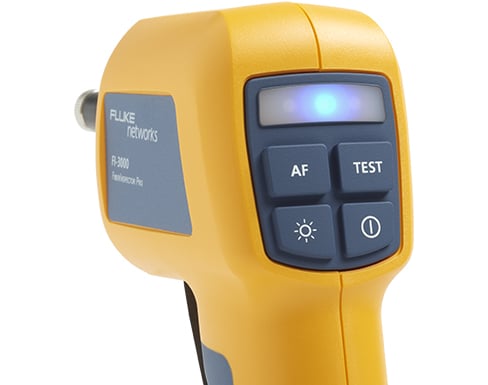

- AutoFocus Control
- PortBright on/off
- LED's indicate the optional PASS/FAIL results and Wi-Fi connection
- Start an automated test without reaching for your Versiv™ Tester or smartphone
- Auto-off saves battery life
- Ergonomic design comfortable for inspecting cables or ports
- Rugged design for constant field usage
- USB port for charging Li-Ion battery and connecting to Versiv
Plug the connector into the FI-3000, touch the autofocus button, and the Live View feature delivers a live view of the fiber endface immediately - with no setup or processing time. Dual cameras provide a single, integrated view of the single fiber or entire MPO endface. Use simple gestures to zoom into the portion of interest, pan across the connector or just tap the image of a specific fiber for a detailed view.
Manual inspection of fiber links and MPO connections can be slow and subject to human error. Manually tracking across multiple fiber endfaces in the connector makes it easy to miss one or more. The FiberInspector Ultra’s autotest mode examines all fiber endfaces in the connector, grades them as per industry standard IEC 61300-3-35 and provides an overall PASS or FAIL result in less than two seconds per fiber. The gesture-based user interface makes it easy to switch from the summary to a detailed view.

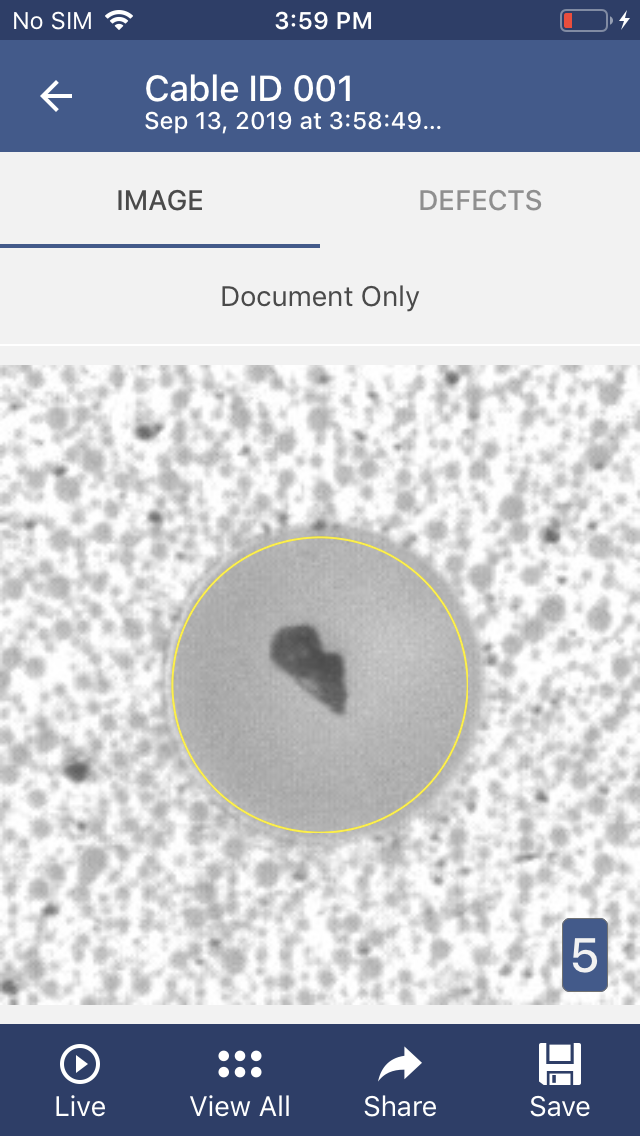

When an endface fails, the FiberInspector shows which fibers failed, and highlights the areas that caused the failure: contamination, pits, chips and scratches. By understanding the cause of the failure, the user can determine the type of cleaning needed or if the connector is damaged beyond repair.
Seamlessly switch from a summary view (left) to an endface image (center), then use the gesture-based interface to zoom into a view of each individual fiber (right) and pan across the entire connector. Individual fibers are labeled so you know what you’re looking at. Red defects are failures, green are acceptable per the selected standard.

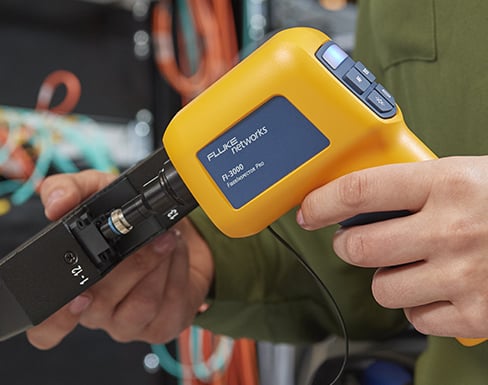

The FI-3000’s unique design makes it easy to inspect both bulkheads and trunk cables. The compact and lightweight (326 g / 11.5 oz) design means you can use it all day without fatigue. The built-in PortBright™ illumination makes it easy to find the right port in dense patch panels in dim data centers or dark wiring closets. All FI-3000 models include a holster which provides convenient access to the camera as well as storage for inspection tips and a Quick Clean™ cleaner.
The FI-3000 can also be connected over Wi-Fi to iOS or Android devices for small jobs or a quick inspection. The FiberInspector app (FI-IN) shows simple optional PASS/FAIL results, but also gives you complete control over the FI-3000, so you can zoom in or out of each endface and pan across a Live View of the entire endface. FI-IN also supports naming and storing of results in the device – or send them as an image or PDF report to others on the team for quick, simple collaboration.
Save results on your phone or share them with others.
Generate detailed PDF reports from your phone or Versiv™ tester. Versiv and LinkWare™ also support integrated reports including Tier 1 (Loss) and Tier 2 (OTDR) tests.
Summary or detailed reports are available
For those installing multiple fiber links, MPO trunks, cassettes or array cables as part of a new installation or upgrade, the FI-3000 integrates with the Versiv™ Cabling Certification System for fast, error free project management and reporting. Versiv’s ProjX™ Management System lets you define each job including the types of cables, identifiers, required tests, and limits. Techs can use the same platform for loss (Tier 1), OTDR (Tier 2) and inspection, reducing training costs and the likelihood of errors. The FI-3000 connects to Versiv via a USB cable.

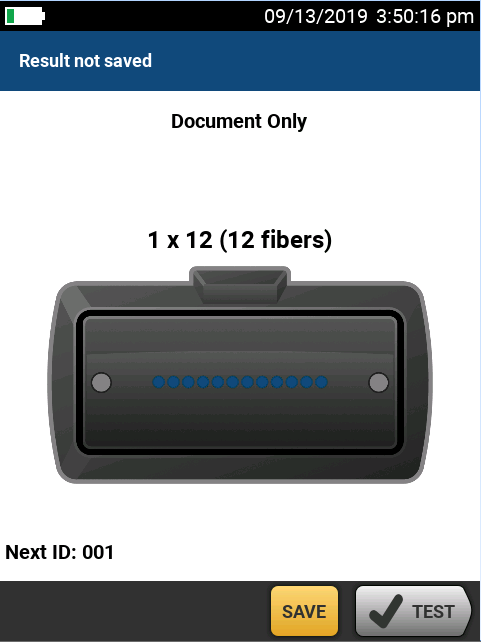

Versiv features a large, high resolution display that lets you see the results clearly. The gesture based Taptive™ screen makes it easy to pan across or zoom in and out of the Live View image.
The FI-3000 used with a Versiv mainframe also works with LinkWare – the defacto industry standard for documenting cabling systems. LinkWare lets you combine Tier 1, Tier 2 and inspection results into a single report for full documentation of every link in the system. The cloud-based version, LinkWare Live, makes it easy to track progress of the job from your smartphone or PC and share results with customers.
The FI2-7300-NW provides the user the ability to test single or MPO connections in secure facilities that do not allow wireless capable devices. This kit has the same configuration as the FI2-7300 but with Wi-Fi disabled.
The Complete Solution for Fiber Inspection
The FI-3000 FiberInspector Ultra kit comes with everything you need to test nearly any type of fiber:

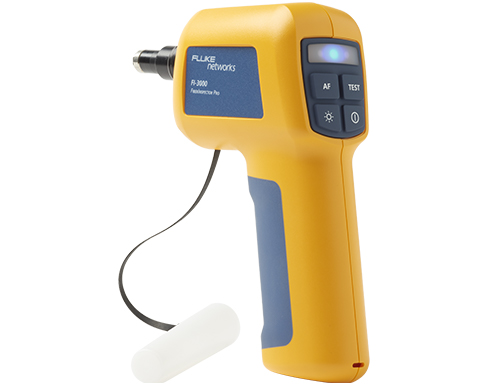

- Ergonomic and Rugged FI-3000 Camera with USB and Wi-Fi communications.
- MPO tips for 12/24 UPC and 12/24 APC connectors
- Adapter for single fiber
The FI2-7300 FiberInspector Ultra adds a Versiv™ mainframe to the FI-3000
The FI-3000 comes standard with tips for inspecting 12/24 UPC and 12/24 APC endfaces. Accessory tip is available for 16/32 UPC configurations.
The FI-3000 addresses your single-fiber inspection needs with the same autofocus, autocentering, autograding and Live View features as MPO. Optional tips are available to support LC, SC, 1.25 mm, 2.5 mm and E2000.
The FiberInspector™ Ultra camera is available in 2 models.
FI-3000 FiberInspector™ Ultra camera – works with both the Versiv™ Cabling Certification System and mobile devices.
FI2-7300 FiberInspector™ Ultra – includes an FI-3000 camera and Versiv 2 mainframe. The FI2-7300 can be purchased as is with Wi-Fi capabilities included, or as the FI2-7300-NW which has the same configuration but with Wi-Fi disabled.
Models & Accessories
FI-3000 Gold Support
FI-3000 FiberInspector™ Ultra camera, Tip Set (12/24 UPC and 12/24 APC), Single Fiber Adapter for FI-1000 tips, AC charger, Getting Started Guide, Holster, Soft Carrying Case. See Photo
1 year Gold Support for FI-3000
3 year Gold Support for FI-3000
MPO 12 or 24 UPC tip
MPO 16 or 32 UPC tip
MPO 12 or 24 APC tip
FI2-7300 Gold Support
The FI2-7300 FiberInspector™ Pro MPO contains: Versiv Mainframe, MPO Probe, USB-USB C cable to connect the probe to the mainframe, Tip Set (12/24 UPC and 12/24 APC), Blank Module to protect the mainframe’s rear connector, AC Charger, Shoulder Strap, USB Interface Cable, Integrated Wi-Fi, Getting Started Guide, Soft Carrying Case.
1 year Gold Support for FI2-7300
3 year Gold Support for FI2-7300
FI2-7300-NW Gold Support
Same configuration as the FI2-7300 with integrated Wi-Fi disabled.
1 year Gold Support for FI2-7300
3 year Gold Support for FI2-7300
FI-3000-NW Gold Support
Same configuration as the FI-3000 with integrated Wi-Fi disabled.
1 year Gold Support for FI-3000
3 year Gold Support for FI-3000
Holster for the FI-3000 probe
Adapter to connect FI-1000 tips to FI-3000 probe
1.25 universal patch cord
LC patch cords
1.25 APC universal patch cord
LC APC universal patch cord
2.5 universal patch cord
2.5 APC universal patch cord
LC/APC lens bulkhead
SC and FC Bulkhead
ST bulkhead video probe tip
E2000/APC bulkhead video probe tip
FC bulkhead fiber connectors
LC bulkhead fiber connectors
2.5 mm (SC, FC, ST) connector for fiber patch cord end faces
1.25 mm (LC) connector for fiber patch cord end faces
SC APC bulkhead fiber connectors
LC APC bulkhead fiber connectors
2.5 mm APC (SC, FC, ST) connector for fiber patch cord end faces
1.25 mm APC (LC) connector for fiber patch cord end faces
FC APC bulkhead fiber connectors
Extender for Bulkhead Connector
QuickClean Cleaner 1.25 mm Fiber, Single Pack
QuickClean Cleaner 1.25 mm Fiber, Pack of 5 cleaners
QuickClean Cleaner 2.5 mm Fiber, Single Pack
QuickClean Cleaner 2.5 mm Fiber, Pack of 5 cleaners
60 Degree camera tip adapter
VERSIV 2 MAIN REPLACEMENT
Operating: -10 °C to +45 °C (+14 °F to +113 °F)
Storage: -10 °C to +60 °C (+14 °F to +140 °F)
Operating: 0 % to 95 % (32 °F to 95 °F, 0 °C to 35 °C)
Storage: 0 % to 95 % (95 °F to 113 °F, 35 °C to 45 °C)
Operating: 4,000 m (3,200 m with AC adapter)
Storage: 12,000 m
2 g, 5 Hz to 500 Hz
1 meter drop test
IEC 61010-1: Pollution Degree 2
IEC 61326-1: Controlled Electromagnetic Environment; IEC 61326-2-1
CISPR 11: Group 2, Class A
USA (FCC): 47 CFR 15 Intentional Radiators: This device complies with part 15 of the FCC Rules.
Single Fiber and MPO: 1x8 (8 fibers), 1x12 (8, 10, or 12 fibers), 1x16 (16 fibers), 2x12 (16, 20, or 24 fibers), 2x16 (32 fibers)
IEC 61300-3-35 ED. 2 MM
IEC 61300-3-35 ED. 2 SM APC
Optional automated Pass/Fail Test Time
Less than 2 seconds per fiber
5 Megapixel 1/4-inch CMOS sensor
Field of view
610 µm x 460 µm
LED, >100,000 hr life
Coaxial blue LED
Lithium-ion; 10.8 hour life
Input: 100 to 240 VAC ±10%, 50/60Hz
Output: 15 VDC, 2 A maximum
Output power: <100 mW Frequency ranges: 2.4 GHz (2412 MHz to 2462 MHz)
6.625 in x 5.375 in x 2.125 in (168 mm x 137 mm x 54 mm)
(with no dust cap or adapter tip)
Length with dust cap: 7.5 in (191 mm)
11.5 oz (326 gm)
(with dust cap and no adapter tip)
* For more information, go to www.flukenetworks.com/manuals and search for “Radio Frequency Data for Class A”
