FI-7000 FiberInspector™ Pro
1-second automated PASS/FAIL certification of fiber optic connector end-faces
- Automated Pass/Fail certification of fiber optic connector end-faces
- Graphical indication of problem areas due to contamination, pits, chips, and scratches
- Certify to industry standards - IEC 61300-3-35
- Eliminate human subjectivity from fiber optic connector end-face measurements
- Save fiber optic connector end-face views during certification process
- Versiv™ modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection
Video and Whitepaper
Request a Demo
|Talk to an Expert||Where to Buy|
Fiber optic connector end-face contamination is a leading cause of fiber failures. Dirt and contaminant cause insertion loss and back-reflection that inhibits optical transmission and causes havoc with transceivers. Fiber loss and OTDR testing can expose this problem, but in many cases, dirty connections make fiber testing time consuming and inaccurate.
Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one fiber optic connector end-face to another upon mating, both sides of any connection must always be cleaned and inspected. Further, mating contaminated fiber optic connectors can cause permanent damage as microscopic debris is crushed between end-faces in physical contact. Even factory terminated patch cords or pigtails must be inspected as protective caps do not keep fiber optic connector end-faces clean. Avoiding this common cause of failure, starts with inspecting the fiber optic connector end-face and eliminating any contamination before insertion into a bulkhead or piece of equipment.
The FI-7000 FiberInspector Pro is a fiber optic inspection scope that allows you to inspect and certify fiber optic connector end-faces in 1 seconds so you can get the job done the first time. This fiber optic inspection scope provides automated PASS/FAIL certification take the guess work out of fiber inspection so anyone can be a fiber expert.
Fiber Inspection Certification
Graphical indication of Problem Areas
Store End-face Images
Built on the Versiv Platform
Versiv’s ProjX™ System
Versiv’s ProjX™ System manages jobs from setup to systems acceptance, ensuring that all tests are completed correctly. Enter the testing details for a job once, and ProjX stores them in a project file with a name the whole team can understand. Change modules or jobs without having to re-enter details. Support multiple testers on the same job by sharing project files via USB sticks or email. Easy just met efficient.
|Set-up or view test limits, and testing attributes.||Project menu screen shows percent complete|
|Project Specific screen shows up to the minute project details.|
Taptive™ User Interface
Now you can test across multiple media types and requirements as easy as using a smartphone. Simply, select the job you’re working on, and the large display confirms the test that needs to be performed. Taptive helps you tap into the overall cabling infrastructure faster and more easily.
Taptive user interface simplifies set-up,
eliminates errors and speeds troubleshooting.
LinkWare™ Live Test Results Management Service
LinkWare Live is a cloud-based service that lets you manage certification jobs anytime, anywhere, with anyone on any device. With LinkWare Live, you can
- Keep track of every test on every job. Get an overview of every project from any smart device. Drill down to each individual test. Instantly receive notification of incorrect test setting or cable IDs.
- Get it right the first time. Define cable IDs and test settings from your PC or tablet. Then send them to the testers or Brother printers at the jobsite for mistake-free testing and labeling.
- Keep your testers up to date. Standards can change without notice, and an out-of-date test report can mean hours of re-testing. LinkWare Live automatically ensures your testers are running the latest.
- Stop wasting time and gas driving testers back to the office. Integrated Wi-Fi allows you to upload your test results straight from the job site to LinkWare Live. Then download them automatically to the right job for fast report generation with LinkWare PC.
- Avoid Project Delays. Track the last used location and monitor the status of all testers to ensure they are always calibrated and running the latest firmware*
- Supports all Versiv models: DSX CableAnalyzer Series, CertiFiber Pro, OptiFiber Pro, and the FI-7000.
*See supported countries.
LinkWare™ Management Software
Project managers have full capabilities to monitor workflow and consolidate test results.
LinkWare pulls data togther into a single report that is easy for customers to understand, showcasing quality and workmanship. LinkWare stats, provides automated statistical reports that turns test results into charts to reveal performance. The report even summarizes your entire cabling and fiber infrastructure in one compact, graphical format, so it is easy to verify margins and anomalies.
|Integrate tests from different testers into one unified report.||LinkWare Stats summarizes all project data|
PASS/FAIL Fiber End-face Grading
Models & Accessories
The FI-7000 models are available in 2 versions: wireless and non-wireless. The Wireless version includes integrated Wi-Fi for uploading results to LinkWare Live. The integrated Wi-FI is disabled in the non-wireless versions for customers who do not wish to receive Wi-Fi

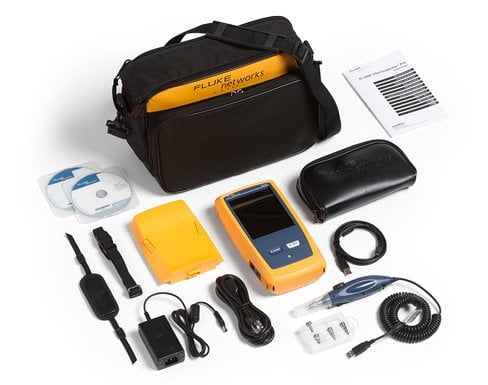

The FI2-7000 FiberInspector Pro contains: Versiv Mainframe, USB Fiber Inspection Video Probe with 4 tips in a box (LC, FC/SC bulkhead, 1.25 and 2.5mm universal), Blank Module to protect the mainframe’s rear connector, AC Charger, Shoulder Strap, USB Interface Cable, Versiv Open Source Software CD, Integrated Wi-Fi, Getting Started Guide, Soft Carrying Case. See Photo
Same configuration as the FI2-7000 with integrated Wi-Fi disabled.
The FI2-7000 FiberInspector Pro with MPO tip and cleaning contains: Versiv Mainframe, USB Fiber Inspection Video Probe with 4 tips in a box (LC, FC/SC bulkhead, 1.25 and 2.5mm universal), MPO Fiber Inspection Adapter Tip, Quick Clean Cleaners for 1.25mm & 2.5mm ferrules and MPO connectors, Blank Module to protect the mainframe’s rear connector, AC Charger, Shoulder Strap, USB Interface Cable, Versiv Open Source Software CD, Integrated Wi-Fi, Getting Started Guide, Soft Carrying Case. See Photo
Same configuration as the FI2-7000-MPO with integrated Wi-Fi disabled.
A USB Fiber Inspection Video probe which works with the Versiv products (CertiFiber Pro, OptiFiber Pro, and DSX CableAnalyzer). See Photo

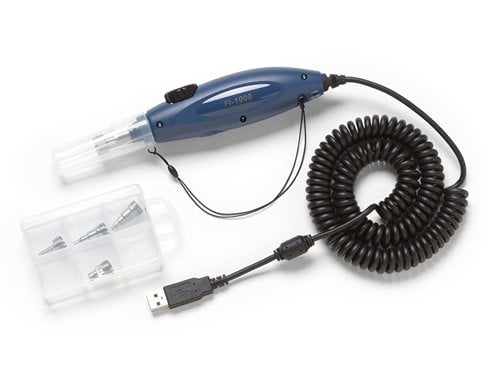

A USB Fiber Inspection Video probe for Versiv products plus tip set (LC, FC/SC bulkhead, 1.25 and 2.5mm universal tips in a box). See Photo
4 FI-1000 tips in a box (LC, FC/SC bulkhead, 1.25 and 2.5mm universal)
SC and FC bulkhead video probe tip. See Photo
LC bulkhead video probe tip. See Photo
Extended LC bulkhead video probe tip. See Photo
ST bulkhead video probe tip. See Photo
MU bulkhead video probe tip. See Photo
E2000/APC bulkhead video probe tip. See Photo
SC/APC bulkhead video probe tip. See Photo
E2000 bulkhead video probe tip. See Photo
LC/APC bulkhead video probe tip. See Photo
2.5 mm universal video probe tip for patch cords. See Photo
1.25 mm universal video probe tip for patch cords
2.5 mm APC universal video probe tip for patch cord. See Photo
Video probe tip for LC simplex and duplex connectors. See Photo
MPO probe tip and translator knob for patch cords and bulkheads
MPO probe tip and translator knob for multi-row patch cords and bulkheads
MPO/APC probe tip and translator knob for patch cords and bulkheads. See Photo
1.25 mm APC universal video probe tip for patch cords. See Photo
MPO/APC probe tip and translator knob for multi-row patch cords and bulkheads. See Photo
MPO/MTP APC replacement tip with no translator knob
MPO/MTP replacement tip with no translator knob
Quick Clean Cleaner 1.25 mm Fiber, LC and MU, Single

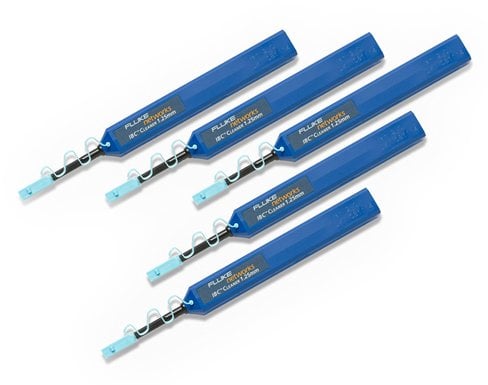

Quick Clean Cleaner 1.25 mm Fiber, LC and MU, 5 pack

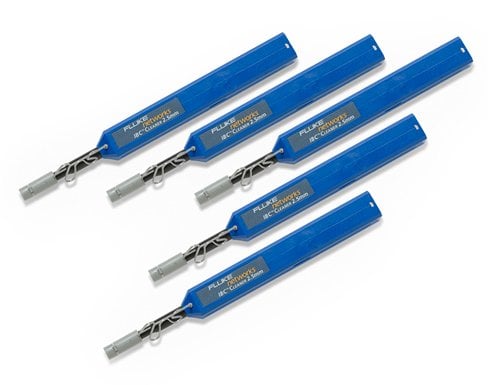

Quick Clean Cleaner 2.5 mm Fiber - SC, ST, FC, E2000, 5 pack
Quick Clean Cleaner 2.5 mm Fiber - SC, ST, FC, E2000, Single
QuickClean Cleaner for MPO 12/24 Fiber, Single Pack - See Photo
QuickClean Cleaner for MPO 12/24 Fiber, Pack of 5 cleaners - See Photo
QuickClean Cleaner for MPO 16/32 Fiber, Single Pack - See Photo
QuickClean Cleaner for MPO 16/32 Fiber, Pack of 5 cleaners - See Photo

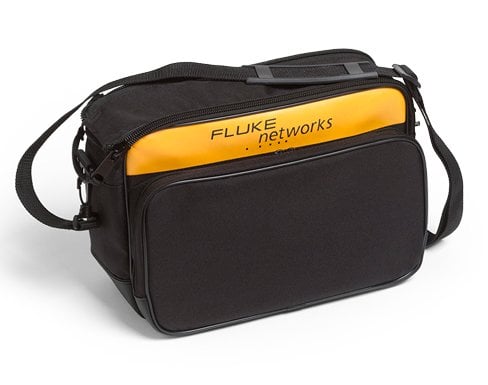

Versiv Small Carry Case. See Photo
Enhanced Fiber Optic Cleaning Kit - Includes an QuickClean 1.25mm cleaner, an QuickClean 2.5mm cleaner, an QuickClean MPO cleaner, a solvent pen, a cleaning cube and a softcase. See Photo
Backpack strap for Versiv Large Case See Photo
30W Power Supply, 15V, 2A with US adapter. See Photo
30W Power Supply, 15V, 2A with US, EU, AU, and UK adapters See Photo
30W Power Supply, 15V, 2A with US, South Africa and India adapters See Photo
EU, AU, UK adapters for 30W power supply. See Photo
South Africa and India adapters for 30W power supply See Photo
WiFi Adapter for Versiv Mainframe. (Available in the following countries.)
Versiv Large Carry Case See Photo
|Inspection Probe specifications|
|2M pixels||Blue LED|
|Light source||Blue LED|
|Power source||Versiv mainframe|
|Field of View (FOV)||Horizontal: 425 µm|
|Vertical: 320 µm|
|Minimum detectable particle size||0.5 µm|
|Dimensions||Approximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip|
|Temperature range||Operating: 32°F to 122°F (0 °C to +50 °C)|
|Storage: -4°F to +158°F (-20°C to +70°C)|
|Weight||Mainframe with module and battery: 3 lbs, 5 oz (1.28 kg)|
|Dimensions||Mainframe with module and battery: 2.625 in x 5.25 in x 11.0 in ( 6.67 cm x 13.33 cm x 27.94 cm)|
|Battery||Lithium ion battery pack, 7.2 volts|
|Battery life||Eleven hour with Inspection probe attached|
|Integrated Wi-Fi||Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)|
|Tester Off||Four hours to charge from 10% to 90% capacity|
|Tester On||Six hours to charge from 10% to 90% capacity with the tester on|
|Operating temperature*||-18ºC to 45ºC|
|Non-operating temperature||-30ºC to 60ºC|
|Operating altitude||4,000 m (13123 ft)|
|3200 m (10,500 ft) with ac adapter|
|Storage altitude||12,000 m|
|* Do not keep battery at temperatures below -20°C (-4°F) or above 50°C (122°F) for periods longer than one week to maintain battery capacity.|
