Setting the Remote Unit to a Fiber Optic Source - DTX xFM Series

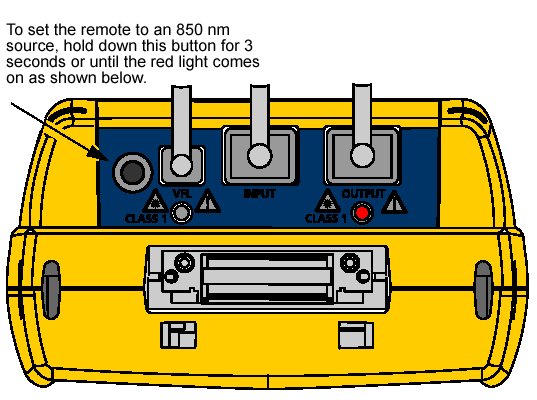

Setting Remote to 850 nm Source with Red Light


Setting Remote to 1300 nm Source with Green Light


DTX xFM Fiber Adapters at Normal Mode

The same system is used for the singlemode module. A steady red light represents 1310 nm and a steady green light represents 1550 nm.
