Wire Map Schemes - DTX CableAnalyzer

The Outlet Configuration must match an appropriate test standard i.e. USOC Single-Pair requires the test limit Voice - 2 Pair. If it does not, you will see the following Error Screen.  1000BASE-TX Crossover has been added to Version 1.4. (Current Version is 2.78)

NEW to Version 1.4 (Current Version is 2.78) will not allow you to select an inappropriate Outlet Configuration.


Incompatible Test Cable






Wire Map USOC Single Pair

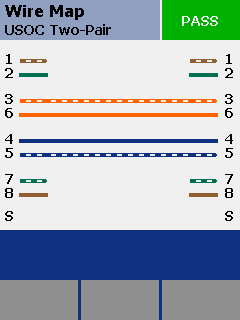

Wire Map USOC Two Pair

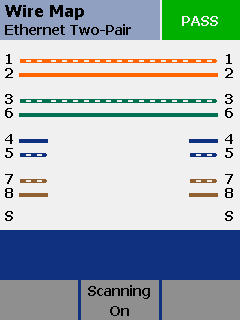

Wire Map Ethernet Two Pair

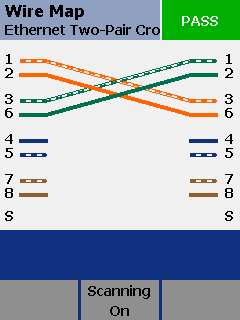

Wire Map Ethernet Two Pair Crossed





Wire Map ATM/TP-PMD Straight

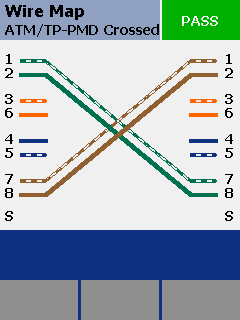

Wire Map ATM/TP-PMD Crossed





Wire Map Crossover

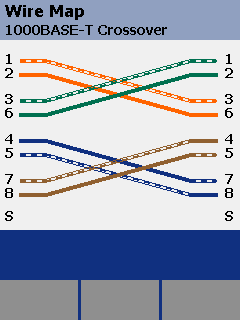

 Wire Map 1000 BASE-T Crossover

  Wire Map Rollover


For safety reasons, the DTX CableAnalyzer will report all wires that are connected. For example, you may select Ethernet as your Outlet Configuration. This is a Two-Pair Wire Map but if all pairs are connected, then all pairs will be displayed as shown below.


Wire Map Ethernet
