Replace worn tips on DSX-PLA004 or DSX-PLA804 Permanent Link Adapters

The tips on the DSX-PLA004 and DSX-PLA804 Permanent Link adapters used by the DSX CableAnalyzer are field replaceable.  If the tips are worn and exhibit persistent open pins on wiremap during testing, replacing the tips is a much less expensive option than replacing the entire DSX-PLA004S or DSX-PLA804S (Permanent Link Adapter Set).

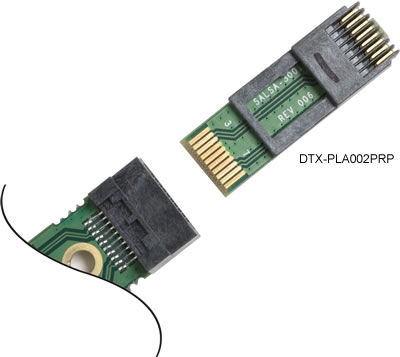

When you order the DTX-PLA002PRP or DSX-PLA804SPRP you will get:

  • Tip x 2
  • Spring latch x 2
  • Conductive washer x 2
  • Screw x 2
  • Instruction sheet

The kits are used to replace the tips on the DSX-PLA004 and DTX-PLA002 (used on DTX-1800 Series) or DSX-PLA804SPRP Permanent Link Adapters.

Note that the tips in the DTX-PLA002PRP kit will not work properly in the DSX-PLA804 adapters. For the DSX-PLA804 adapters, use the tips in the DSX-PLA804SPRP kit.

For details on how to replace this tip on a DSX-PLA004 or DTX-PLA002, click here.

For details on how to replace this tip on a DSX-PLA804, click here.



Additional information
Using a printed circuit board design gives superior electrical consistency when compared to a traditionally terminated RJ45 plug.
