Category 6A / Class Ea Permanent Link accuracy for the DSX CableAnalyzer
The DSX-5000 CableAnalyzer exceeds the Level IIIe accuracy requirements of ANSI/TIA-1152 and IEC 61935-1 Ed.4 (draft) for Category 6A & Class EA Permanent Link measurements.

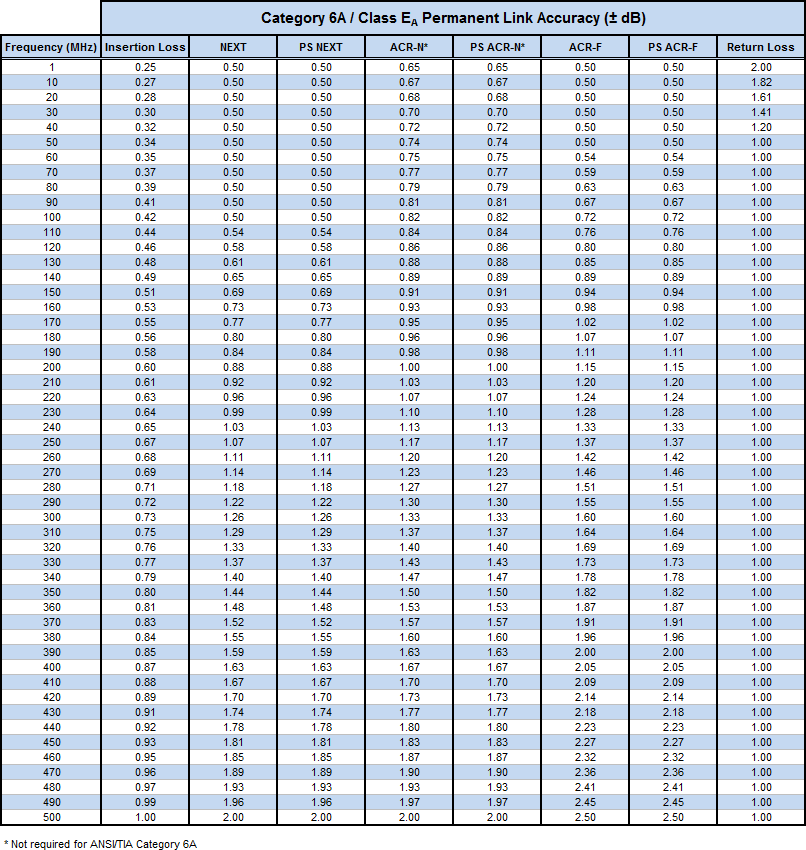

ANSI/TIA-1152 and IEC 61935-1 Ed.4 require the test equipment vendor to mark frequency based measurements with an asterisk (*) if they fall within the nominal accuracy of the test equipment. The table below details the DSX-5000 CableAnalyzer nominal accuracy for ANSI/TIA-568-C.2 Category 6A and ISO/IEC 11801:2010 Edition 2.0 Class EA Permanent Link measurements.
You can click on this table to download detailed frequency information for each parameter.
