Application limits for fiber

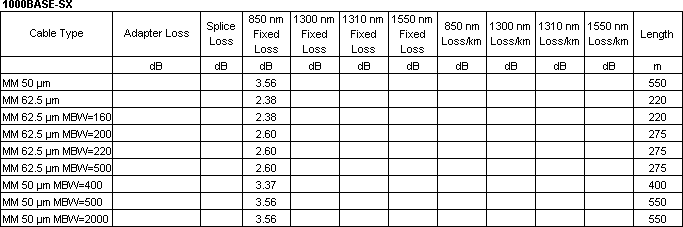

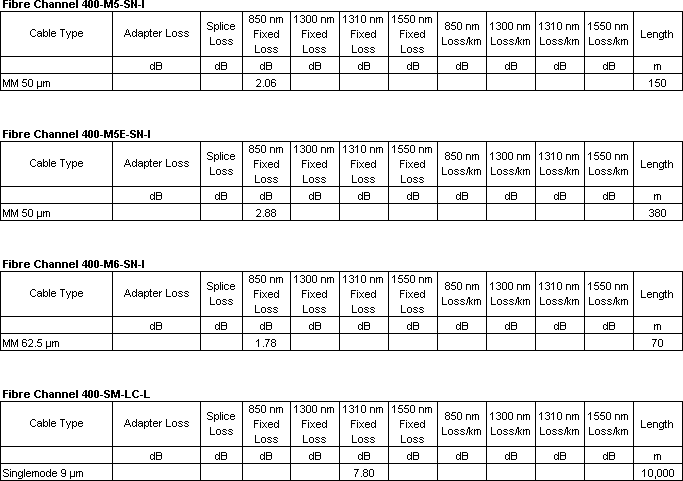

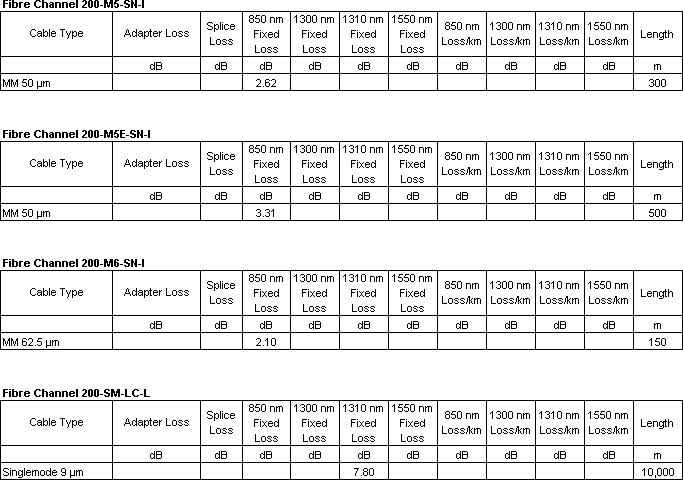

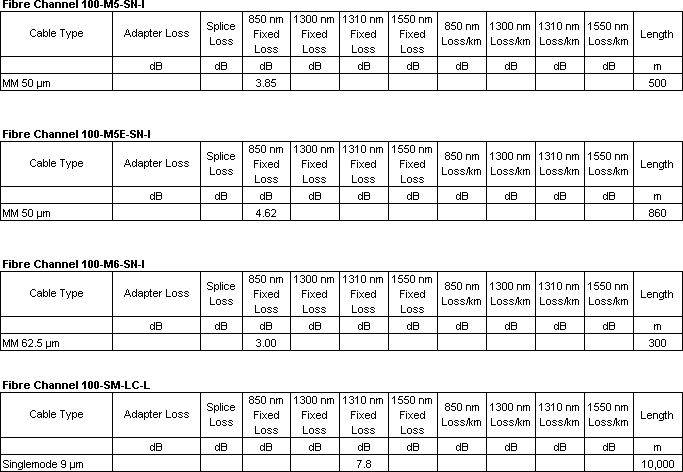

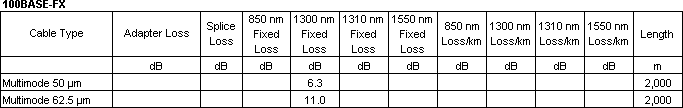

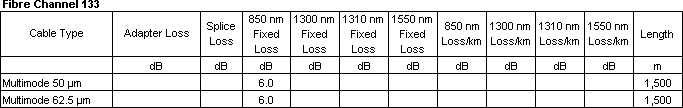

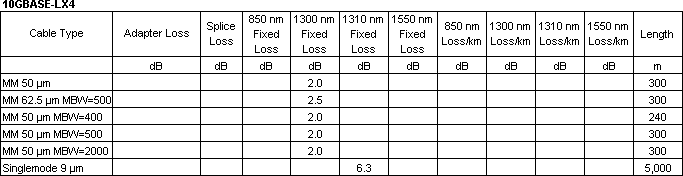

Are you using the SimpliFiber to determine if your fiber link will support a specific application? If so, you will need to compare the dB loss reported on the SimpliFiber with the application requirement below. Please note that many of these applications have a length restriction.

If you are using the SimpliFiber to verify the workmanship of a fiber link, you will need to manually calculate the loss budget.
