DATASHEET

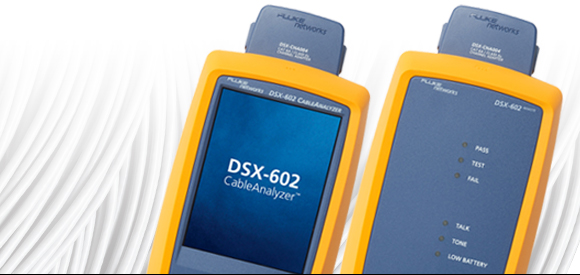

DSX-602 CableAnalyzer™

June 11, 2019

Download PDF

Overview

The DSX-602 CableAnalyzer advantage: speed, performance and accuracy.

The DSX-602 CableAnalyzer is the essential certification tool for copper, twisted pair structured cabling from Cat 3 / Class C through Cat 6A / Class EA. It features speed and reliability that makes you more efficient and productive – you can see the results on the bottom line.

Its gesture-based user interface allows your techs to spend less time interpreting screens and more time testing.

The 500 MHz frequency range certifies Cat 6A/Class EA cabling for 10 Gigabit Ethernet in just 10 seconds.

Advanced diagnostics pinpoint the location of a failure.

LinkWare™ Live cloud-based service lets you manage certification jobs anytime, anywhere, with anyone on any device.

Cat 6A certification in 10 seconds

The DSX-602 CableAnalyzer gives you a complete solution that streamlines every aspect of the certification job – from setup, to testing and troubleshooting, to reporting results to the customer. The DSX-602 performs Class E/Cat 6 certification tests in just 9 seconds and Class EA/Cat 6A in 10 seconds – in full compliance with industry standards and with the industry's highest accuracy. This incredible speed means you can test hundreds of links in an eight-hour shift.

Troubleshoots faults fast

When a link fails, the DSX-602 HDTDR and HDTDX algorithms quickly identify the point of failure (distance from the tester). Instead of spending time executing trial and error corrections – and re-testing to find out whether the problem has been resolved – the technician knows exactly where to look to fix the failing link. Even if only two percent of the cables certified in one shift fail Autotest, you’ll save as much as two hours of labor time per day certifying.

Fast even when you’re not testing

The DSX-602 isn’t just a fast way to test. It's ProjX™ system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly right the first time. The Taptive™ gesture-based user interface, bright color display, ample memory, and built-in talk feature all contribute to overall productivity while enhancing the user experience. Extended battery life means you can do more on a single charge. This all adds up to save you time and money every day.

DSX-602 CableAnalyzer™ Comparison Chart
Feature DSX-602 Versiv DSX-5000 Versiv DSX-8000
Description Essential Cat 6A and Class EAcopper tester Cat 6A and Class FA copper tester Fastest, most accurate Cat 8 and Class I/II copper cable tester
Cat 3 – Cat 6A / Class EA
Class FA
Cat 8 / Class I/II
Maximum Frequency 500 MHz 1000 MHz 2000 MHz
Autotest Time 10 sec Class EACat 6A
9 sec Class E/Cat 6
10 sec Class EACat 6A
9 sec Class E/Cat 6
16 sec Cat 8 / Class I/II
8 sec Class EA/Cat 6A
7 sec Class E/Cat 6
Shield Integrity Test
Permanent Link Adapter Optional Included Included
Advanced Fault Info Troubleshooting
PoE Resistance Unbalance
Integrated Alien Crosstalk Capability
Coax Adapters Optional Optional Optional
M12 Adapters Optional Optional Optional
Patch Cord Adapters   Optional Optional
Fiber – OLTS, OTDR & Inspection   Optional Optional
Modular Plug Terminated Link (MPTL) support
LinkWare™ PC
LinkWare Live
Storage Capacity ~12,000 Cat 6A test results with plots ~12,000 Cat 6A test results with plots ~12,000 Cat 6A test results with plots
  The modular Versiv family future-ready design supports up to TIA Cat 8 and ISO Class I/II, singlemode and multimode fiber loss and OTDR testing plus inspection. Advanced diagnostics instantly pinpoint the cause and location of cable faults in plain language. Both Versiv copper cable testers provide measurements to support advanced technologies, including Alien Crosstalk for NBASE-T and other applications, and Resistance Unbalance for Power over Ethernet (PoE). To view the complete line of copper and fiber Cabling Certification products visit www.flukenetworks.com/versiv



DSX-602 Models The DSX-602 is available in two versions: wireless and non-wireless. The wireless version of the DSX-602 includes integrated Wi-Fi for uploading results to LinkWare Live. The non-wireless version has the integrated Wi-Fi disabled for customers who do not wish to receive Wi-Fi support
Model Description
DSX-602 DSX-602 CableAnalyzer includes:
  • DSX-602 CableAnalyzer Main Unit & Smart Remote
  • Two Cat 6A/ Class EA channel adapters
  • One 6-inch (15 cm) RJ45 reference patch cord
  • Soft Carrying case
  • USB cable for PC communications
  • Two AC adapters
  • DSX-602 Getting Started Guide
DSX-602-NW Same configuration as the DSX-602 with integrated Wi-Fi disabled.
DSX-602-PRO DSX-602-PRO CableAnalyzer includes:
  • DSX-602 CableAnalyzer Main Unit & Smart Remote
  • Two Cat 6A/ Class EA channel adapters
  • One 6-inch (15 cm) RJ45 reference patch cord
  • Two Permanent Link Adapters
  • Soft Carrying case
  • USB cable for PC communications
  • Two AC adapters
  • DSX-602 Getting Started Guide
GLD-DSX-602 1 YR Gold Support for the DSX-602
GLD-DSX-602-PRO 1 YR Gold Support for the DSX-602-PRO



Test Standards
TIA Category 3, 5, 5e, 6, 6A per TIA 568-C.2 or TIA-1005
ISO/IEC Class C and D, E, EA certification per ISO/IEC 11801:2002 and amendments
IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T



General Specifications
Speed of Autotest Full 2-way Autotest of Category 5e or 6/Class D or E: 9 seconds; Full 2-way Autotest of Category 6A/Class EA: 10 seconds
Supported test parameters (test standard determines parameters and frequency range reported) Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss (Attenuation), Return Loss (RL), Near End Crosstalk (NEXT), Attenuation-to-Crosstalk Ratio (ACR-N), ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power Sum ACR-N
Maximum Frequency 500 MHz
Test Result Storage 12,000 Cat 6A with plots
Display 5.7 in LCD display with a projected capacitance touchscreen
Dimensions Main Unit and Smart Remote: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm)
Weight 3 lbs (1.36 kg)
Battery Lithium ion battery pack, 7.2 V
Battery Life 8 hours, typical
Battery Charge Time 4 hours (below 40° C, with tester off)
Languages supported English, French, German, Italian, Japanese, Portuguese, Spanish, Chinese, Korean, Russian, Trad Chinese, Czech, Polish, Swedish, Hungarian
Calibration Service center calibration period is 1 year
Integrated Wi-Fi Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz)



Environmental Specifications
Operating temperature 32° F to 113° F (0° C to 45° C)
Storage temperature -22° F to +140° F (-30° C to +60° C)
Operating relative humidity (% RH without condensation) 0% to 90%, 32° F to 95° F: (0° C to 35° C)
0% to 70%, 95° F to 113° F: (35° C to 45° C)
Vibration Random, 2 g, 5 Hz -500 Hz
Shock 1 m drop test with and without module and adapter attached
Safety CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Altitude 13,123 ft (4,000 m) 10,500 ft (3,200 m) with ac adapter
EMC EN 61326-1: Portable
