LOSS LIMIT threshold - Fiber QuickMap™

The Fiber QuickMap™ has the ability to automatically evaluate the loss of a connection from 0.50 dB to 6.10 dB. This is done by setting a threshold in the tester. Changing the threshold value is easy.










To change it, press MENU/SELECT.

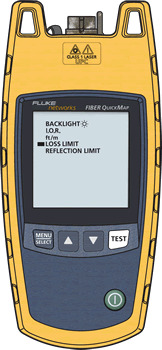

Press  or  to highlight LOSS LIMIT.











Press MENU/SELECT and use  and  to change the value.











Press MENU/SELECT when done.
