Feet/Meters setting - Fiber QuickMap™

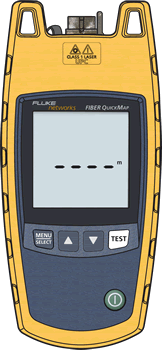

The Fiber QuickMap™ can display the length in either feet or meters. It ships from the factory with the units set to ft.

Maximum length reported:
  • Feet = 4921ft
  • Meters = 1500 m








To change from feet to meters or meters to feet, press MENU/SELECT.








Press  or  to select ft/m.








Press MENU/SELECT.








Press  or  to toggle from feet to meters and meters to feet.









Press MENU/SELECT when done.
