MultiFiber™ Pro Optical Power Meter and Fiber Test Kits

First MPO fiber tester to support both Singlemode and Multimode MPO fiber certification
  • Automatic scanning and testing of all fibers in MPO connectors with “Scan All”
  • Support for both Multimode and Singlemode MPO fiber trunks
  • Eliminates the need for fan-out cords when testing MPO fiber trunks
  • Easy to interpret test results with minimal navigation
  • The user interface displays all 12 fibers
  • Automatic 8, 10 and 12 fiber measurements
  • Troubleshoot MPO fiber links and drill down to single fiber test results
View the Video Endorsements
ROI Calculator Request Demo
Talk to an Expert Where to Buy



Overview

Introducing the MultiFiber™ Pro Optical Power Meter and Fiber Test Kits.

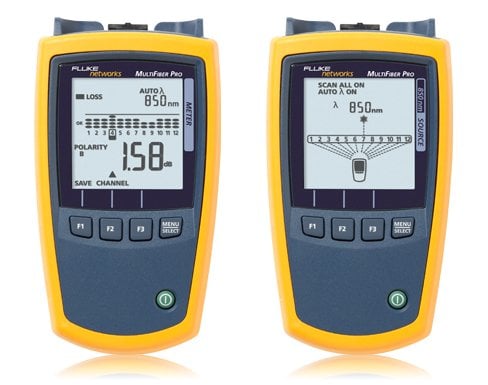

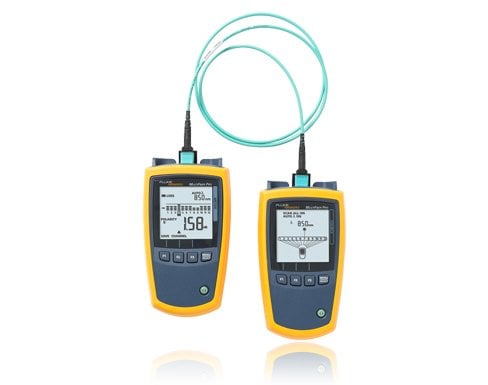

MultiFiber Pro Optical Power Meter and Source is the only fiber tester that can certify MPO fiber trunks without the use of fan-out  cords. This singlemode and multimode MPO fiber testing kit eliminates the complexity of polarity issues, and it makes cassettes easier to test in the field. Whether it is using 10 Gbps preterminated MPO fiber trunks or planning for next-generation 40/100 Gbps Ethernet performance, data centers are standardizing on an MPO connector solution. Typical data center fiber installation means time-consuming, manual and imprecise MPO validation. MultiFiber Pro Optical Power Meter and Source is 90 percent faster than single fiber cable certification because it measures power loss and validates polarity on 12 fibers in a single connector— reducing test time from weeks to days.



Features

"Scan All" Function

The Scan All function in the MultiFiber Pro Power Meter automatically scans and tests all 12 fibers in MPO connectors – taking just 6 seconds to complete all loss or power measurements. This feature automates the certification of MPO terminated fibers and eliminates the time consuming and manual process of moving the fiber tester from fiber to fiber while using fan-out cords.

Built-in Polarity Verification

The simple purpose of any polarity scheme is to provide a continuous connection from the link’s transmitter to the link’s receiver. For array connectors, TIA-568-C.0 defines three methods to accomplish this: Methods A, B and C. Deployment mistakes are common because these methods require a combination of patch cords with different polarity types. The polarity measurement of MultiFiber Pro allows the user to test individual patch cords, permanent links and channels for correct polarity.

On-board MPO Connector

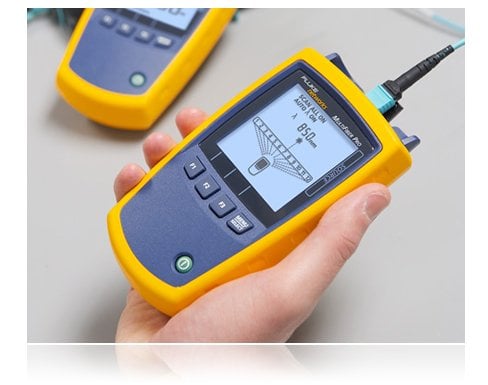

Equipped with MPO connector on both the Optical Power Meter and Light Source, it eliminates the use of costly and complicated fan-out cords to test MPO fibers.

Uncovered ports can put cabling, equipment and testers at risk for contamination and affect performance. Ensuring a covered connection on your tester can protect it from dirt and dust. MultiFiber Pro makes it easy by shuttering the MPO connector giving you greater test reliability and peace of mind.

Simple User Interface

The MultiFiber Pro is so successful at simplifying the task of simultaneously representing polarity, power and loss results for 12 fibers that the user interface is patent pending. The power meter enables the users to easily comprehend the measurement results of 12 fibers simultaneously. The light source identifies each fiber within the MPO connector that is being tested. Any individual measurement that fails the test limit is plainly identified to allow root-cause analysis. This powerful yet straightforward test set enables everyone to become a fiber testing expert and increases efficiency in testing data center projects.

Select an Individual Fiber

One of the main problems in the data center is the ability to drill down to a single fiber during testing and troubleshooting. MultiFiber Pro can troubleshoot a single fiber within an MPO trunk and provide a single fiber test result. This ability increases MPO connector verification and troubleshooting flexibility with more precise, per-fiber data and reporting.

Easy Reporting

The MultiFiber Pro Power Meter stores up to 3,000 test results (or the equivalent of 250 MPO cables) internally which can be uploaded to a PC using the LinkWare™ 7 Cable Test Management Software. LinkWare 7 allows you to manage test results, edit cable ID’s, print professional reports and even export the data into spreadsheet formats.

Kits for Every Need

MultiFiber Pro is available in several convenient kit configurations to meet all your cleaning, inspection and verification testing needs. Some kits include:

FI-7000 FiberInspector Pro with MPO tip and cleaning supplies
The FI-7000 is the ultimate inspection tool. It enables you to quickly inspect and certify fiber end-faces inside ports or patch cords. It’s 2-second automated PASS/FAIL eliminates human subjectivity and enables anyone to become a fiber inspection expert.

  • Automated Pass/Fail acceptance testing of fiber end-faces
  • Large touchscreen for pinch and zoom
  • Graphical indication of problem areas due to contamination, pits, chips, and scratches
  • Certify to industry standards - IEC 61300-3-35
  • Eliminate human subjectivity from end-face measurements
  • Includes MPO tip for inspection probe and MPO cleaner



Fiber Cleaning – IBC™ OneClick Cleaners
Cleaning is critical. Fluke Networks’ OneClick Cleaners instantly clean fiber optic bulkhead connectors and end-faces. Just push the tool tip to engage cleaning action and pull back on the wheel – it’s that simple. The MPO OneClick Cleaner is bundled with the MultiFiber Pro kits to ensure that you have the best cleaning tool from the beginning.



Models & Accessories


Models
Model Number/Name Description
MFTK1200

MultiFiber Pro Testing Base Kit includes MultiFiber Pro Power Meter, 850 Light Source, Test Cords, MPO adapters, and carrying case. See Photo

MFTK1200 Gold Support:
GLD-MFTK1 year of Gold Support for the MFTK1200 or MFTK1400
GLD3-MFTK3 years of Gold Support for the MFTK1200 or MFTK1400
MFTK-SM1310

MultiFiber Pro 1310 nm Singlemode Kit includes MultiFiber Pro Power Meter, 1310 nm Light Source, Test Reference Cords, MPO adapters, and carrying case. See Photo

MFTK-SM1310 Gold Support:
GLD-MFTK-SM1 year of Gold Support for the MFTK-SM1310 or MFTK-SM1550
GLD3-MFTK-SM3 years of Gold Support for the MFTK-SM1310 or MFTK-SM1550
MFTK-SM1550

MultiFiber Pro 1550 nm Singlemode Kit includes MultiFiber Pro Power Meter, 1550 nm Light Source, Test Reference Cords, MPO adapters, and carrying case. See Photo

MFTK-SM1550 Gold Support:
GLD-MFTK-SM1 year of Gold Support for the MFTK-SM1310 or MFTK-SM1550
GLD3-MFTK-SM3 years of Gold Support for the MFTK-SM1310 or MFTK-SM1550

Bundles
Model Number/Name Description
MFTK-MM850-SM1310

MultiFiber Pro Multimode & 1310 nm Singlemode Kit includes MultiFiber Pro Power Meter, 850 nm Light Source, 1310 nm Light Source, Test Reference Cords, MPO adapters, and carrying case. See Photo

MFTK-MM850-SM1310 Gold Support:
GLD-MFTK-MMSM1 year of Gold Support for MFTK-MM850-SM1310 or MFTK-MM850-SM1550
GLD3-MFTK-MMSM3 years of Gold Support for MFTK-MM850-SM1310 or MFTK-MM850-SM1550
MFTK-MM850-SM1550

MultiFiber Pro Multimode & 1550 nm Singlemode Kit includes MultiFiber Pro Power Meter, 850 nm Light Source, 1550 nm Light Source, Test Reference Cords, MPO adapters, and carrying case. See Photo

MFTK-MM850-SM1550 Gold Support:
GLD-MFTK-MMSM1 year of Gold Support for MFTK-MM850-SM1310 or MFTK-MM850-SM1550
GLD3-MFTK-MMSM3 years of Gold Support for MFTK-MM850-SM1310 or MFTK-MM850-SM1550
MFTK-SM1310-SM1550

MultiFiber Pro Singlemode test kit includes MultiFiber Pro Power Meter, 1310 nm laser light source, 1550 nm laser light source, Singlemode test cords (1 unpinned/unpinned; 1 unpinned/pinned; 2 pinned/pinned), 2 APC MPO adapters, and carrying case

MFTK-SM1310-SM1550 Gold Support:
GLD-MFTK-SM1310-SM15501 YR Gold Support for the MFTK-SM1310-SM1550
GLD3-MFTK-SM1310-SM15503 YRS Gold Support for the MFTK-SM1310-SM1550
OFPQI-MFP
The complete kit for the Network Technician who needs to test ultra-short fiber links, verify polarity with MPO fiber trunks and inspect data center connection types. This kit includes everything you need—the OptiFiber® Pro OTDR, the MultiFiber™ Pro Loss Length tester and the MPO inspection tip—for troubleshooting multimode and singlemode fiber, field testing multimode MPO components and inspecting MPO ports and end faces on fiber optic connectors.
OFPQI-MFP Gold Support:
GLD-OFPQI-MFP1 year of Gold Support coverage for OFPQI-MFP which includes the OFP-100-QI, MFTK1200 and FI1000-MPO-UTIP
GLD3-OFPQI-MFP3 years of Gold Support coverage for OFPQI-MFP which includes the OFP-100-QI, MFTK1200 and FI1000-MPO-UTIP
OFPMI-MFP
The complete kit for the Network Technician who needs to test ultra-short fiber links, verify polarity with MPO fiber trunks and inspect data center connection types. This kit includes everything you need—the OptiFiber® Pro OTDR, the MultiFiber™ Pro Loss Length tester and the MPO inspection tip—for troubleshooting mulitmode fiber, field testing MPO components and inspecting MPO ports and end-faces on fiber optic connectors.
OFPMI-MFP Gold Support:
GLD-OFPMI-MFP1 year of Gold Support coverage for OFPMI-MFP which includes the OFP-100-MI, MFTK1200 and FI1000-MPO-UTIP
GLD3-OFPMI-MFP3 years of Gold Support coverage for OFPMI-MFP which includes the OFP-100-MI, MFTK1200 and FI1000-MPO-UTIP

Accessories
Model Number/Name Description
MFPOWERMETER

MultiFiber Pro Optical Power Meter. See Photo

MFPOWERMETER Gold Support:
GLD-MF1 year of Gold Support for the MFPOWERMETER or MFMULTIMODESOURCE
GLD3-MF3 years of Gold Support for the MFPOWERMETER or MFMULTIMODESOURCE
MFMULTIMODESOURCE

MultiFiber Pro Mulitmode 850 LED light source. See Photo

MFMULTIMODESOURCE Gold Support:
GLD-MF1 year of Gold Support for the MFPOWERMETER or MFMULTIMODESOURCE
GLD3-MF3 years of Gold Support for the MFPOWERMETER or MFMULTIMODESOURCE
MF1310source

MultiFiber Pro SM 1310 nm laser light source. See Photo

MF1310source Gold Support:
GLD-MF-SMS1 year of Gold Support for the MF1310source or MF1550source
GLD3-MF-SMS3 years of Gold Support for the MF1310source or MF1550source
MF1550source

MultiFiber Pro SM 1550 nm laser light source. See Photo

MF1550source Gold Support:
GLD-MF-SMS1 year of Gold Support for the MF1310source or MF1550source
GLD3-MF-SMS3 years of Gold Support for the MF1310source or MF1550source
FI-7000-MPO

FiberInspector Pro w/MPO and cleaning. See Photo

FI-7000-MPO Gold Support:
GLD-FI-7000-MPO1 year Gold Support coverage for the FI-7000-MPO
GLD3-FI-7000-MPO1 years Gold Support coverage for the FI-7000-MPO
TRC-MPO-PP-B

1 m MM TRC, MPO/MPO, Pinned/ Pinned, Type B polarity. See Photo

TRC-MPO-UP-B

1 m MM TRC, MPO/MPO, Unpinned/ Pinned, Type B polarity. See Photo

TRC-MPO-UU-B

0.3 m MM TRC, MPO/MPO, Unpinned/ Unpinned, Type B polarity. See Photo

TRC-SM-MPOAPC-PP-A

1 m SM TRC, MPOAPC/MPOAPC, Pinned/Pinned, Type A polarity. See Photo

TRC-SM-MPOAPC-UP-A

1 m SM TRC, MPOAPC/MPOAPC, Unpinned/Pinned, Type A polarity. See Photo

TRC-SM-MPOAPC-UU-A

0.3 m SM TRC, MPOAPC/MPOAPC, Unpinned/Unpinned, Type A polarity. See Photo

BKC-MPO-ULC

1 m breakout cord for MM MPO Unpinned LC connector. See Photo

BKC-MPO-USC

1 m breakout cord for MM MPO Unpinned SC connector. See Photo

SBKC-MPOAPCU-LCAPC

1 m Breakout Cord for SM MPOAPC Unpinned LCAPC Connector. See Photo

SBKC-MPOAPCU-SCAPC

1 m Breakout Cord for SM MPOAPC Unpinned SCAPC Connector. See Photo

ADP-MPO-A

Type A polarity MPO adapter for SM APC. See Photo

ADP-MPO-B

Type B polarity MPO adapter. See Photo

NFC-IBC-1.25mm

OneClick cleaners for 1.25 mm LC and MU connector and patch cord (5 qty). See Photo

NFC-IBC-2.5mm
OneClick cleaners for 2.5 mm SC, ST, FC connector and patch cord (5 qty). See Photo
NFC-IBC-MPO

OneClick cleaners for MPO/MPO connector (5 qty). See Photo

NFC-KIT-CASE-E
Enhanced Fiber Optic Cleaning Kit – includes (1) OneClick cleaner for 1.25mm connector, (1) OneClick cleaner for 2.5mm connector, (1) OneClick cleaner for MPO/MPO® cleaner, a solvent pen, a cleaning cube and a soft case. See Photo
NF370
MPO Fiber Inspection Adapter Tip for FT600


Specifications

Environmental
Operating temperature-10ºC to +50ºC
Storage temperature-20ºC to +50ºC
Operating humidity95% (10ºC to +35ºC) non-condensing
75% (35ºC to +45ºC) non-condensing
Uncontrolled <10ºC
Operating altitude4,000 m
Storage altitude12,000 m
VibrationRandom 2 G, 5 Hz to 500 Hz



Optical Power Meter (Specifications apply at 23ºC (73ºF), unless otherwise noted.)
Detector typeInGaAs
Calibrated wavelengths850 nm, 1300 nm, 1310 nm, 1550 nm
Measurement range0 dBm to -50 dBm
Test time6 seconds
Power measurement linearity±0.1 dB2
Power measurement uncertainty±0.35 dB2
Power measurement repeatability< 0.10 dB2
Display resolution, dB or dBm0.01
Power display unitsdBm, mW, µW
User-selectable limit for loss0.05 dB to 50.0 dB, in increments of 0.05 dB up to 10.0 dB and 0.1 dB up to 50.0dB
Auto wavelength detectionYes
Polarity detectionDetects A, B, C, and Corning Plug & Play™ Universal Systems polarities
2 kHz detectionYes
Record storage3000 records, one fiber per record (250 12-fiber cables)
External interfaceUSB 2.0, full speed
Optical connectorMPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 µm, 50 µm, and singlemode fibers. Connector has a self-closing, protective cover.
Power requirement2 AA alkaline batteries
Battery life330 hours (typical)
Automatic power-off10, 20, 30, or 60 minutes (can be disabled by the user)
Low battery warningLow battery icon blinks
Size5.8 in x 3.2 in x 1.6 in (14.7 cm x 8.0 cm x 4.0 cm)
Weight10.9 oz (309 g)
  1. For 850 nm, 0 dBm to -50 dBm. For 1300, 1310, 1550 nm, -5 dBm to -50 dBm
  2. For a continuous-wave optical signal.
  3. Measured power levels £0 dBm. Backlight on. Battery life depends on the condition and type of batteries used. Fluke Networks recommends alkaline batteries.
  4. 23°C, after 10 minutes of warm-up time.
  5. 23°C, after 15 minutes of warm-up time.
  6. Auto wavelength, SCAN ALL, and backlight on. Battery life depends on the condition and type of batteries used. Fluke Networks recommends alkaline batteries.
Sources
 850 nm Source1310 nm Source1550 nm Source
Emitter typeLEDLaser
Wavelength±30 nm1310 nm ±20 nm1550 nm ±20 nm
Spectral width (FWHM)50 nm (typical)2 nm typical, 5 nm maximum
Minimum output power≥ -24 dBm≥ -1 dBm
Power output stability≤±0.1 dB over 8 hours4±0.25 dB over 8 hours5
Laser safetyIEC 60825-1:Class 1
Encircled fluxMeets TIA 455-526-14B, ISO/IEC 14763-3, and IEC 61280-4-1 for 50/125 µm at the source’s optical connector.NA
Optical connectorMTP/MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 µm and 50 µm fibers, non-APC only. Connector has a self-closing, protective cover.MTP/MPO interface for 12-fiber, unpinned plugs. Compatible with 9 µm fibers, APC only. Connector has a self-closing, protective cover.

4. 23°C, after 10 minutes of warm-up time.

5. 23°C, after 15 minutes of warm-up time

Modes2 kHz modulated, auto wavelength/td>
Power requirement2 AA alkaline batteries
Battery life6>30 hours (typical)
Automatic power-off10, 20, 30, or 60 minutes (can be disabled by the user)
Low battery warningLow battery icon blinks
Size5.8 in x 3.2 in x 1.6 in (14.7 cm x 8.0 cm x 4.0 cm)
Weight11.4 oz (323 g)
