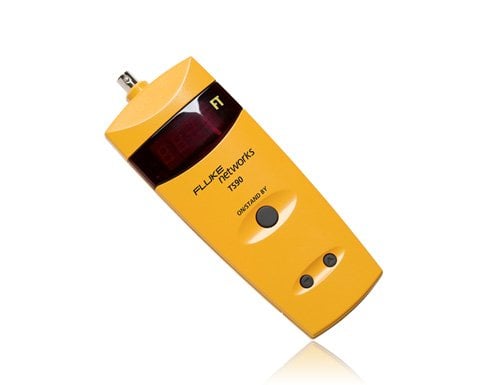

TS® 90 Cable Fault Finder

An easy-to-use fault locator, cable and wire manager and tone generator.

  • Works on any two or more conductor cable up to 2,500 feet (762 meters)
  • Instantly measures distance to open or any fault from one end of any cable pair
  • Patented SmartTone® tone generator positively identifies pair
  • Measures cable distance on spool
  • Measures constantly while 'on'
  • Displays distance reading rather than waveform
  • Large LED screen
  • High voltage detection
  • Moisture proof
  • One-button operation
  • Additional line cord options available for coaxial cable (F-connectors) and other applications

Talk to an Expert Where to Buy




Overview

This easy-to-use, competitively priced tester is three tools in one—a fault locator, a cable and wire manager and a tone generator with SmartTone technology. From just ONE END of any two or more conductor cable you can measure up to 2,500 feet (762 meters). Easily find the distance to opens or shorts on electrical wire, telephone wire, security wire and coax.

Results appear as a distance reading rather than a waveform, so it's perfect for technicians unfamiliar with Time Domain Reflectometery (TDR). Find and fix cable problems without pulling new wire or blindly cutting into walls. Intermittent faults are easier to find because the unit constantly measures while "On."

It's perfect for inventory management of cable stock in trucks and warehouses and it can help you generate more accurate bids for jobs by quickly assessing needs and managing the cable stock with greater accuracy.

Patented SmartTone technology gives you five distinct tones to use for exact wire and pair identification, even in proximity to current-bearing cable. When touching the wires together and momentarily shorting the far end of a cable pair, the SmartTone technology will change the cadence of the tone generated.  This tone change you hear through a probe positively verifies the correct wire pair.

Voltage detection in the unit will immediately sound an alarm if you accidentally clip onto an energized pair, up to 250VAC.



Models & Accessories
Models
Model Number/Name Description
26500090TS90 cable fault finder with BNC to alligator clips

Accessories
Model Number/Name Description
26501100TS100/TS90 line cord, BNC to alligator clip
26501160TS100/TS90 pouch with belt clip
26501200TS100/TS90 linecord, BNC to F(MALE)
26501700TS100/TS90 linecord, BNC to banana to ABN
26501600TS100/TS90 linecord, banana


Specifications



Power of operation

4 AA alkaline batteries, provide 50 hours

Reverse Battery Protection

No damage to the tester will occur if the batteries are installed backwards.

Input Protection

250 V rms ac, continuous or intermittent

Moisture

If the tester is exposed to water, some may get inside, but it will suffer NO DAMAGE. See the moisture notes in the Maintenance section.

Impedance Range

35 Ω to 330 Ω with auto-compensation within this range. Cables with an impedance outside this range will not be properly tested and may produce erratic or incorrect readings.

Maximum Length

2500 feet on most cable types, and 500 feet on very lossy cables. The tester will feet on very lossy cables. The tester will display –Err if the cable is too long to be correctly measured.

Representative Maximum
Cable Length

2500 feet: CAT-5 Twisted Pair
2000 feet: 12/2 ac Wire
1000 feet: RG-6/U TV Coax
500 feet (150 meters): RG-174/U Coax

Minimum Length

No minimum length.  Minimum non-zero reading is 2 feet.

Length Accuracy

±2 feet for cables less than 10 feet ±5 feet for cables longer than 10 feet and shorter than 200 feet ±3 % and ±5 feet for cables longer than 200 feet

High Voltage Detection

An ac voltage of more than 5 V rms will trigger the High Voltage Warning.

Measurement Rate

Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity.

VOP

Adjustable from -20- to -99-, retained during power off. Default to -66- when batteries are changed.

Measurement Technology

Time Domain Reflectometry (TDR) with 50 Ω drive impedance, 6 V maximum pulse height.

Low Battery

Indicator flashes when battery voltagefalls below 4.1 V

Tone Injection

Approximately 1 kHz at an amplitude of 80 % of battery voltage. Variable frequency and cadence. Tone characteristic is changed as cable condition changes to “normal-open” from any other condition.

Cable Type

Virtually all two or more conductor cables

Temperature Range Operating Storage

32 °F to 131 °F (0 °C to 55 °C) -40 °F to 158 °F (-40 °C to 70 °C)

Humidity Operating Storage

0 % to 80 % 0 % to 100 %

Weight

1 lb with batteries and clip leads

Operating Altitude

10,000 ft max

Certifications and Compliance

Conformité Européenne. Conforms to relevant European Union directives. CAN/CSA-C22.2 No. 60950-1-03 CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
