JackRapid™ Punchdown Tool

Patented jack termination tool allows you to terminate jacks 8 times faster.

  • Cuts installation time - easy to use handle, seats and cuts all wires at once, saving you up to 1 minute installation time per jack!
  • High quality, consistent terminations - no more compromised connections and wasted jacks
  • Simple, one-handed operation with an ergonomically designed handle reduces hand fatigue
  • Unique design easily accommodates close-to-wall installation
  • Replaceable blade head for use with multiple jack types

Buy JackRapid



Overview

JackRapid™ is a patented jack termination tool that saves time and increases accuracy by seating and terminating all wires at once with a simple squeeze of the handle. JackRapid allows you to terminate jacks eight times faster than traditional impact tools - with accuracy that's unmatched.

The patented jack termination tool seats and terminates all wires simultaneously. The built-in blade cuts off the excess wire after it is seated in the connector, eliminating the need for a secondary trim step.

Simple, one-handed operation, with an ergonomically designed handle, reduces hand fatigue.  With JackRapid, you’ll never punch into the palm of your hand or through drywall again.



Features

Terminate jacks 8 times faster

  1. Strip cable jacket.
  2. Determine wiring scheme. Dress all 4 pairs (8 wires).
  3. Insert jack in JackRapid front first with IDC slots facing blades of JackRapid.
  4. Ensure jack is completely and securely inserted in jack holder bed with IDC slots facing the blades.
  5. Pull trigger completely and remove excess wire prior to releasing trigger.
  6. Wires will be seated and cut for a solid termination.
  7. Release handle and remove jack from JackRapid tool. Visually verify proper termination.

Replaceable blade heads

JackRapid blade heads are specific to certain jack types--check the list below to see if JackRapid supports the jacks you use, and if not, look for a new JackRapid version in the future!


Description JackRapid-Model Number

JackRapid Termination Tool
Leviton Jacks

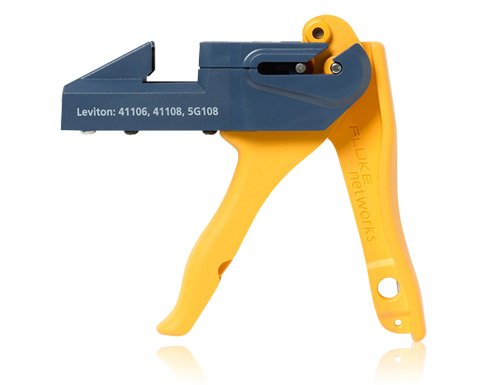

Supports jack models: 41106, 41108 Cat3/5, 5G108 Cat5e

JR-LEV-1
JackRapid Blade Head
Leviton Jacks
Supports jack models: 41106, 41108 Cat3/5, 5G108 Cat5e
JR-LEV-1-H
JackRapid Termination Tool
Leviton Jacks

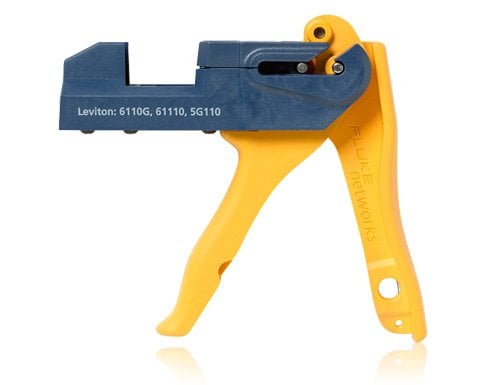

Supports jack models: 5G110 Cat 5e, 61110 Cat 6
JR-LEV-2
JackRapid Blade Head
Leviton Jacks
Supports jack models: 5G110 Cat 5e, 61110 Cat 6
JR-LEV-2-H
JackRapid Termination Tool
SYSTIMAX Jacks
Supports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e
JR-SYS-UNI-1
JackRapid Blade Head
SYSTIMAX Jacks
Supports jack models: M1BH Cat 3, C5 Cat 5, MPS100E Cat 5e
JR-SYS-UNI-1-H
JackRapid Termination Tool
SYSTIMAX Jacks
Supports jack models: MGS400 Cat 6, MGS500 Cat 6
JR-SYS-2
JackRapid Blade Head
SYSTIMAX Jacks
Supports jack models: MGS400 Cat 6, MGS500 Cat 6
JR-SYS-2-H
JackRapid Termination Tool
Uniprise Jacks
Supports jack models: UNJ300 Cat 3, UNJ500 Cat 5e, UNJ600 Cat 6
JR-SYS-UNI-1
JackRapid Blade Head
Uniprise Jacks
Supports jack models: UNJ300 Cat 3, UNJ500 Cat 5e, UNJ600 Cat 6
JR-SYS-UNI-H
JackRapid Termination Tool
ORTRONICS Jacks
Supports jack models: TJ5E00, TJ600, TJ610
JR-ORT-2
JackRapid Blade Head
ORTRONICS Jacks
Supports jack models: TJ5E00, TJ600, TJ610
JR-ORT-2-H
JackRapid Termination Tool
ADC Jacks
Supports jack models: KM8, CopperTen
JR-ADC-2
JackRapid Blade Head
ADC Jacks
Supports jack models: C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45
JR-ADC-2-H
JackRapid Termination Tool
Panduit Jacks
Supports jack models: NK688M and NKP5E88M
JR-PAN-2
JackRapid Blade Head
Panduit Jacks
Supports jack models: NK688M and NKP5E88M
JR-PAN-2-H



Models & Accessories


Models
Model Number/Name Description
JR-PAN-2
JACKRAPID TERMINATION TOOL (for Panduit NK688M, NKP5E88M)
JR-ADC-2
JR-ADC-2, JACKRAPID TERMINATION TOOL (FOR ADC C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45)
JR-ORT-2
JR-ORT-2,JACKRAPID TERMINATION TOOL (FOR ORTRONICS TJ5E00, TJ600, TJ610)
JR-SYS-2
JR-SYS-2,JACKRAPID TERMINATION TOOL(FOR SYSTIMAX MGS400,MGS500,MFP420,MFP520)
JR-LEV-2
JR-LEV-2,JACKRAPID TERMINATION TOOL (FOR LEVITON 61110, 5G110, 6110G)
JR-SYS-UNI-1
JR-SYS-UNI-1,JACKRAPID TERMINATION TOOL (MPS100E,C5,M1BH & UNJ600/500/300)
JR-LEV-1
JR-LEV-1,JACKRAPID TERMINATION TOOL (FOR LEVITON 41106, 41108, 5G108)

Accessories
Model Number/Name Description
JR-PAN-2-H
JACKRAPID REPLACEMENT BLADE HEAD(for Panduit NK688M, NKP5E88M)
JR-ERGOHANDLE
JR-ERGOHANDLE,JACKRAPID ERGONOMIC HANDLE
JR-ADC-2-H
JR-ADC-2-H, JACKRAPID REPLACEMENT BLADE HEAD (FOR ADC C6a CopperTen® UTP RJ45 jack and the C6 TrueNet® KM8 UTP RJ45)
JR-ORT-2-H
JR-ORT-2-H,JACKRAPID REPLACEMENT BLADE HEAD (FOR ORTRONICS TJ5E00,TJ600, TJ610)
JR-SYS-2-H
JR-SYS-2-H,JACKRAPID REPLACEMENT BLADE HEAD(FOR SYSTIMAX MGS400,MGS500, MFP420, MFP520)
JR-LEV-2-H
JR-LEV-2-H,JACKRAPID REPLACEMENT BLADE HEAD (FOR LEVITON 61110, 5G110, 6110G)
JR-SYS-UNI-1-H
JR-SYS-UNI-1-H,JACKRAPID REPLACEMENT BLADE HEAD (MPS100E,C5,M1BH&UNJ600/500/300)
JR-LEV-1-H
JR-LEV-1-H,JACKRAPID REPLACMENT BLADE HEAD (FOR LEVITON 41106, 41108, 5G108)


Documents



Data Sheets

Title/Description Download
JackRapid Data Sheet
Download PDF
1.17 MB


Catalogs

Title/Description Download
Fluke Networks´ Solution Catalog NEW
68 page guide to selection and ordering Fluke Networks´ Solutions and Products
Download PDF
7.32 MB


Demos

Title/Description Demo
JackRapid Punchdown Tool Animation Virtual Demo
View Demo
Terminate to Test Demo
View Demo
