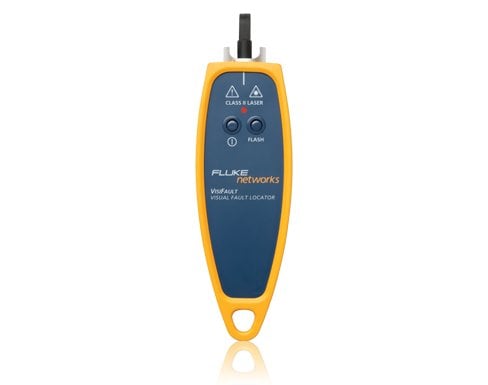

VisiFault™ Visual Fault Locator - Cable Continuity Tester

Product Highlights

Visual fault locator cable continuity tester locates fibers, finds faults, verifies continuity and polarity.

Locates visual faults including tight bends, breaks and bad connectors
Accelerates end-to-end fiber checks
Easily verifies polarity and identifies fibers
Features continuous and flashing modes
Ergonomic case survives drops, impacts and vibrations View More >

Supports 2.5 mm and 1.25 mm SFF connectors
Over 80 hours of battery life with two AA batteries

Data Sheet

PRODUCT NAVIGATION

Overview

In today's fast-paced workplace maximizing productivity is essential. Whether installing new fiber links or troubleshooting an existing network, the faster you can locate a problem, the faster you can fix it. That's easier said than done when you are faced with a complex network of fibers, connectors and patch cords.

You can diagnose and repair simple fiber link problems with Fluke Networks' VisiFault^TM Visual Fault Locator (VFL). The laser-powered VisiFault Visual Fault Locator is a cable continuity tester that locates fibers, verifies cable continuity and polarity. This cable continuity tester helps find breaks in cables, connectors and splices. Continuous and flashing modes make for easier identification. Compatible with 2.5mm and 1.25mm connectors for easy connection. Ruggedly constructed for demanding field-testing. This visual fault locator has a long battery life for hours of use.

Features

Fiber Verification and Fault Location

VisiFault emits a bright beam of red light easily visible from a distance. Connect the VisiFault to one end of a fiber then locate that fiber at the other end, even if it one of many fibers either in a cable or terminated in a rack. Perform simple end-to-end continuity checks. Verify the proper polarity and orientation of fibers within a multi-fiber connector like the MT-RJ.

VisiFault can quickly illuminate fiber breaks, damaged connectors on patch cords, defective splices in splice trays, and tight fiber bends in and around equipment racks. The choice of a continuous wave output mode for steady fault illumination or a flashing output mode makes for easier fault location.

Easy To Use

The integrated universal 2.5mm adapter makes for easy connection to SC, ST, FC, and FJ connectors. The optional 1.25mm adapter allows for connection to LC and MU connectors. Attach the VisiFault to your belt using a lanyard or in the carrying case so it is always on hand when you need it. Two AA batteries gives you more than 80 hours of continuous mode battery life.

Rugged construction

Fluke Networks built the VisiFault to last. VisiFault incorporates an energy-absorbing holster over an impact-resistant case to withstand drops, impacts and rough treatment, ensuring years of trouble-free operation. Together with a heavy-duty tethered end cap to protect the fiber adapter, VisiFault is the VFL for demanding field applications. Unlike more fragile VFL's that utilize a flashlight body or plain plastic case, Fluke Networks industrially engineered the VisiFault custom-case to be mechanically tough. The case is compact for field-use and ergonomically designed for comfort.

Models & Accessories

Models

VisiFault

VisiFault Visual Fault Locator with 2.5mm universal adapter, two AAA batteries

VISIFAULT-FIBERLRT

VisiFault Visual Fault Locator with 2.5mm universal adapter, two AAA batteries; FiberLert live fiber detector, 850 nm to 1625 nm with two AAA batteries. See Photo

Accessories

NF380

Universal VisiFault adapter for connectors with 1.25mm ferrules

Specifications

Optical

Fiber compatibility

Multimode and Singlemode

Wavelength

650 nm (visible wavelength)

Laser safety rating

Class II

Output power

< 1.3 mW

Output modes

Continuous (steady) and flashing (2-3Hz pulsed)

Range

3 km multimode, 4 km singlemode

Environmental and mechanical

Operating temperature

0 °C to 40 °C

Storage temperature

-20 °C to 60 °C

Relative humidity

95% (10 to 35 °C)

Vibration

Random, 2g, 5-500 Hz

Shock

1 m drop onto all corners and face

Altitude

3000 m

General

Dimensions

157 x 52 x 37 mm (6.2 x 2.0 x 1.3 inch)

Weight (including batteries)

0.18 kg (5.7 oz)

Adapter

2.5 mm universal

Adapter cap

Tethered protective end cap

Controls

On/off, continuous/flashing

Battery type

2 x AA

Battery life

> 80 hours in continuous mode

Safety

CSA C22.2 No. 1010.1 1992, EN 61010-1, CE

Carrying Case

Soft sided with belt loop

Documents

Application Notes

Fiber Testing Best Practices - Pocket Guide

Request your 4” x 6”, sturdy pocket guide that is ideal to take on all your fiber jobs. Includes a quick-action summary and checklist, this guide is an invaluable tool to ensure you never miss a critical step during your fiber testing or troubleshooting.

Download PDF

Manual

VisiFault Instruction Sheet, Rev. 1

Download PDF
