MicroMapper™ Wiremap Tester

Simple verification tester verifies wiremap and identifies faults with LEDs.

  • Testing of twisted pair cables for open circuits, shorts, crossed pairs, reversed pairs and split pairs
  • Network cable mapper with easy-to-read fault display
  • Tone generator for tracing installed cables hidden in walls, floors and ceilings
  • Remote unit enables one-person testing of installed cables
Buy Online
Talk to an Expert Where to Buy


Overview



Whether you're an electrical contractor, a home networking professional, datacom specialist or IT/network manager, the Fluke Networks family of powerful Voice/Data/Voice (VDV) verification and troubleshooting tools will allow you to verify your work while delivering a quality installation.

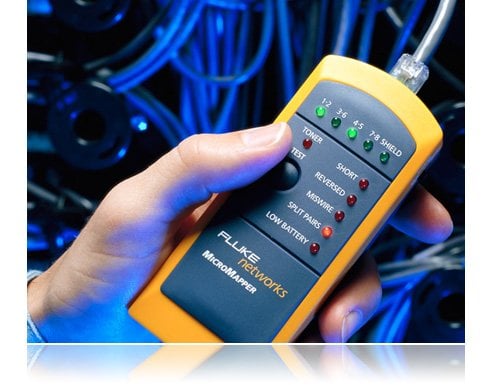

The MicroMapperTM is a small handheld cable tester and network cable mapper which enables network professionals to quickly and easily verify the integrity of Ethernet twisted pair cabling.





Features

Quickly and Easily Test Twisted Pair Cabling

The MicroMapper small handheld cable tester quickly and easily tests twisted pair cabling, giving you visibility of opens, shorts, crossed, reversed and split pairs. Just push the TEST button and MicroMapper will automatically scan all wire pairs for any existing faults in your cable.

MicroMapper's built-in tone generator works with the IntelliTone™ Pro Probe or any other analog probe, allowing you to trace cable through walls, floors, and ceilings.

The MicroMapper network cable mapper also includes a remote unit that allows one person to test installed cabling or patch cords.



Models & Accessories


Models
Model Number/Name Description
MT-8200-49A
MicroMapper Includes: MicroMapper and MicroMapper Remote, patch cable, (4) 1.5 Volt AAA Alkaline battery and user guide


Specifications

General
Dimensions 4.93' x 2.05' x 1.18' (125 x 52 x 30 m)

Weight

0.28 lbs (130 g)
Minimum length for split pair detection is 2 ft (0.6m)
Testing twisted pair cables over 656 ft (200 m) in length

Battery

(4) 1.5 Volt AAA Alkaline battery; low battery indication by LED
