Datasheet: JackRapid™ Termination Tool

Introducing the new JackRapid, jack termination tool – the industry’s most innovative and time-saving termination tool. This patented tool seats and terminates all wires simultaneously, with one squeeze of the ergonomic handle. Get accurate terminations and clean, consistent cuts every time.

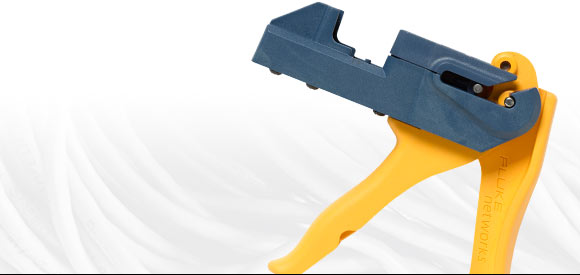

JackRapid™ Termination Tool

Reduces installation time

  • Easy-to-use tool seats and cuts all wires at once
  • Increases productivity – install jacks 8 times faster

Accurate, clean and consistent cuts and terminations

  • Consistent terminations every time – no more wasted jacks
  • Built-in bed helps hold jack in place

Eliminates user fatigue

  • Ergonomic handle
  • Convenient, built-in stripper

Future proof

  • Replaceable blade heads for use with multiple vendor jack types

Wall-friendly

  • Unique design easily accommodates close-to-wall installations
Item Model Name Description
3093687 JR-LEV-1 JackRapid Termination Tool
(for Leviton 41106, 41108, 5G108)
3093756 JR-LEV-1-H JackRapid replacement blade head
(for Leviton 41106, 41108, 5G108)
3093808 JR-SYS-UNI-1 JackRapid Termination Tool
(for Systimax MPS100E, C5, M1BH and Uniprise UNJ600/500/300)
3093813 JR-SYS-UNI-1-H JackRapid replacement blade head
(for Systimax MPS100E, C5, M1BH and Uniprise UNJ600/500/300)
3093693 JR-LEV-2 JackRapid Termination Tool
(for Leviton 61110, 5G110, 6110G)
3093763 JR-LEV-2-H JackRapid replacement blade head
(for Leviton 61110, 5G110, 6110G)
3093700 JR-SYS-2 JackRapid Termination Tool
(for Systimax MGS400, MGS600, MFP420, MFP520)
3093824 JR-SYS-2-H JackRapid replacement blade head
(for Systimax MGS400, MGS600, MFP420, MFP520)
3093721 JR-ORT-2 JackRapid Termination Tool
(for Ortronics TJ5E00, TJ600, TJ610)
3093774 JR-ORT-2-H JackRapid replacement blade head
(for Ortronics TJ5E00, TJ600, TJ610)
2525461 JR-ADC-2 JackRapid Termination Tool
(for ADC KM8, Copper Ten®)
3338024 JR-ADC-2-H JackRapid replacement blade head
(for ADC KM8, Copper Ten®)
3093742 JR-PAN-2 JackRapid Termination Tool
(for Panduit NK688M, NKP5E88M)
3093795 JR-PAN-2-H JackRapid replacement blade head (for Panduit NK6X88M, NK688M, NKP5E88M)
3057463 JR-ERGOHANDLE JackRapid Ergonomic Handle

Get accurate terminations and clean, consistent cuts every time with the JackRapid Termination Tool.

Strip cable jacket

Step 1

Strip cable jacket with a standard cable stripper or the built-in cable stripper.

Determine wiring scheme

Step 2

Determine wiring scheme. Dress all 4 pairs (8 wires).

Inserted jack in JackRapid Front First

Step 3

Insert jack in JackRapid front first with IDC slots facing blades of JackRapid.

Securely Inserted Jack

Step 4

Ensure jack is completely and securely inserted in jack holder bed with IDC slots facing the blades.

Trigger Releasing

Step 5

Pull trigger completely and remove excess wire prior to releasing trigger.

Cut Wire for Solid Termination

Step 6

Wires will be seated and cut for a solid termination.

Proper Termination Verification

Step 7

Release handle and remove jack from JackRapid tool. Visually verify proper termination.
