Datasheet: CableIQ™ Qualification Tester - The network tech’s vision into cabling bandwidth.

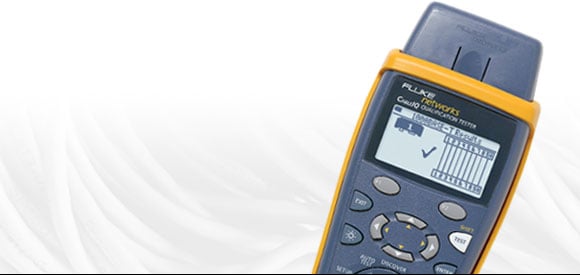

CableIQ, the first cabling bandwidth tester for network technicians

As an IT professional, you have a tough balancing act. You’re an on-the-spot problem solver. And you’ve got your eye on future enhancements, seamlessly upgrading the network to higher speeds, while optimizing the current infrastructure. All this without adding staff and whileworking with smaller budgets.

That’s why Fluke Networks designed CableIQ – an easy-to-use cable troubleshooting and bandwidth qualification tester specifically for network technicians. It has all the power you need to see whether your cable is qualified to support 10/100, VoIP or Gigabit Ethernet and quickly solve network connectivity problems in one intuitive, handheld tool.

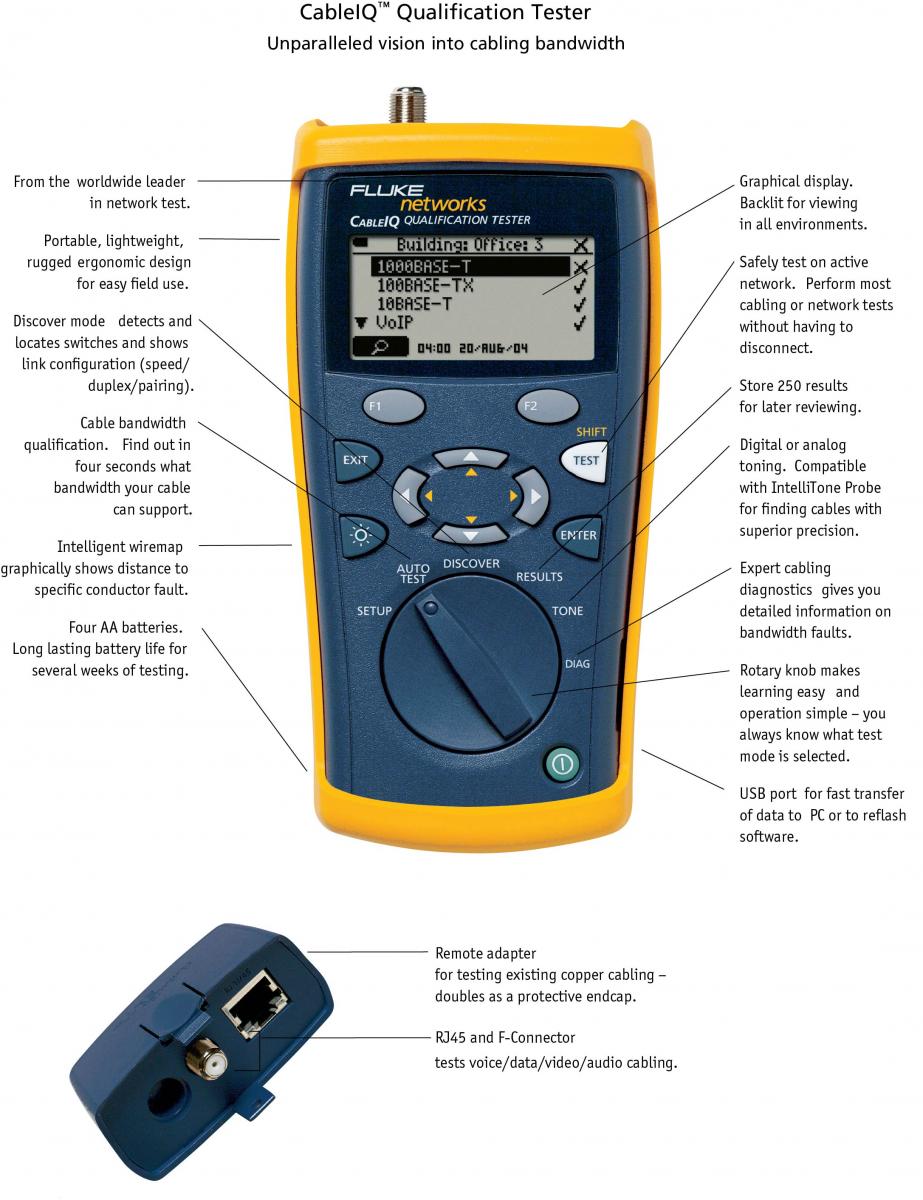

CableIQ: See network infrastructure problems quickly

  • Isolate cabling problems from network problems. Save time and money by escalating fewer trouble tickets.
  • See existing cabling bandwidth. Four-second test quickly determines if your existing cabling can supportvoice/10/100, VoIP or Gigabit Ethernet.
  • Troubleshoot cabling performance faults. Determine why the existing cabling plant cannot support the desired network speed(e.g. connection fault at 7 feet).
  • Free up 10% or more of your switch ports. Discover what is at the far end of any cable, whether it is an open cable, a PC, an analog phone, or switch.
  • Detect speed/duplex mismatches in a matter of seconds. Determine a PC’s duplex settings and compare settings to the connected switch all from one location.
  • Isolate faults easier with intelligent wiremap. Test for wiremap, length, shorts, split pairs or opens, and graphically see the distance to specific pin faults, such as “pin 1 break at 37 feet.”
  • Locate cables and wires with superior accuracy. Breakthrough IntelliTone™ digital signaling technology precisely locates cables in even the most chaotic wiring closet.
  • Empower frontline techs with an easy-to-use tool. Intuitive user interface and graphical display guides users with little or no training required.
  • Avoid disputes over cause of network problems. Save results or upload them to a PC with Cable IQ Reporter Software (included).

CableIQ gives network techs new vision into cabling bandwidth

CableIQ is the first cabling tool designed for network technicians who need to troubleshoot and qualify cabling bandwidth. It gives even the most novice tech vision to see what speeds existing cabling can support, quickly isolate cabling from network problems, and discover what is at the far end of any cable. That means network techs can close trouble tickets faster, reduce on-call time, and save money by better utilizing their existing infrastructure.

Reduce escalated problems by as much as 30%

CableIQ’s powerful troubleshooting capability and intuitive interface enable frontline technicians to identify and troubleshoot a wider range of infrastructure problems. Is the port active? Are the duplex settings matched? Is it a network problem or a cable problem? Can the cable support the required network bandwidth? CableIQ is the only tool that can answer all these questions before trouble tickets are escalated to the next level.

Troubleshoot cabling faults in half the time

CableIQ shows you whether your cabling is qualified to support the network’s required bandwidth, and provides detailed information on the nature and location of cabling performance faults. Intelligent wiremap graphically displays the cable‘s wiring configuration, and shows the distance to opens and shorts. Advanced diagnostics also identifes and locates non-wiremap related connection faults, such as cross-talk or large impedance changes. Built-in IntelliTone digital technology allows you to tone and trace without disconnecting from the network. With CableIQ, your techs can close trouble tickets faster by cutting cable troubleshooting time in half.

CableIQ

Ensure a smooth transition to VoIP or Gigabit Ethernet

When you deploy Voice over IP (VoIP) or Gigabit Ethernet, you want to make sure the existing cabling will support the band width requirements of your new equipment. Your cabling was certified, but moves adds and changes have rendered many links incapable of running desired speeds. CableIQ quickly reveals whether a link, including patch cords, is qualified for voice, 10/100BASE-T, VoIP, or Gig. Knowing your cabling‘s bandwidth capabilities before upgrading can prevent countless hours of future downtime and labor hours wasted on unnecessary troubleshooting.

See what customers are saying about CableIQ:

“CableIQ’s best feature is its ability to see cabling bandwidth. I had a PC that was locking up intermittenly. I plugged CableIQ into the link and found a Cat 3 patch cord. After swapping out the cord, the problem wentaway.” – Network Specialist

“The ability to troubleshoot an active port is a timesaver – reducing the total time needed for problem resolution.” – Electronic Communications Staff Associate

“If we put one of these in the hands of every frontline tech, we could save ourselves 30% in on-call time.” – Network Administrator

Pro Optical Loss Test  Set

Experience the unique capabilities of CableIQ by taking a virtual test drive at www.flukenetworks.com/seecableiq. Or call us at 1-844-721-8130 (US and Canada), and let a Fluke Networks Systems Engineer show you how CableIQ technology can work for you. Visit www.flukenetworks.com/contact to locate Fluke Networks’sales organizations worldwide.

Pro Optical Loss Test  Set

Ordering Infomation

Model Description
CIQ-100
CableIQ Qualfication Tester
CableIQ Qualification Tester includes CableIQ with remote adapter and soft carrying case
CIQ-KIT
CableIQ Advanced IT Kit
CableIQ Advanced IT Kit includes CableIQ with remote adapter, IntelliTone 200 Probe, six remote IDs, rugged carrying case
CIQ-IDK57
CableIQ Remote Identifier Kit
CableIQ Remote Identifier Kit includes three remote identifiers numbers 5-7
CIQ-FTKSFP
Copper and Fiber Technician’s Kit
Copper and Fiber Technician’s Kit includes the CableIQ (CIQ-KIT) and SimpliFiber Pro (FTK1000) Fiber Test Kit.
CIQ-KRQ
Residential Qualifier Kit
Residential Qualifier Kit includes CableIQ main unit (CIQ-100), RJ45 patch cord (2), RJ11 patch cord (2), USB cable, bare wire adapter, speaker wire adapter, coax cable, coax BNC adapter, coax RCA adapter, 'Qualified' labels (50), CD ROM user manual, getting started guide, AA batteries (4) and a soft carrying case.

Specifications

Cable types supported UTP, STP, FTP, SSTP, RG6, RG59, audio, security
Qualification autotests 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 1394b S100, TELCO, Wiremap only, Coax
Supported tests Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection
Find fault Measures crosstalk and impedance and compares against appropriate limits based on qualification test selected. Detects location of large point sources as well as distributed sources in the cabling if they are sufficient to disqualify the application
Results storage Up to 250 qualification test results
Power Battery type: 4 AA (NEDA 15A, IEC LR6) alkaline batteries
Battery life 20 hours of typical use, without backlight
Other battery types supported 4AA photo lithium, NIMH, NICAD
Dimensions and weight 7 in x 3.5 in x 1.75 in (17.8 cm x 8.9 cm x 4.5 cm) 1.2 lb (0.55 kg)
M12/ RJ45 Cable Specifications
Cable type Ethernet cable, Cat5e, shielded, 2 Pair AWG 26 stranded (7 wire), RAL 5021 (water blue), M12 4 pos. D- coded on RJ45 connector
Number of positions 4
Fixed cable length 2 m
Volume resistance ≤ 5 m Ω
Insulation resistance ≥ 100 M Ω
Ambient temperature -20°C to 50°C
Inflammability class acc to UL 94 V0
Surge voltage category II
Pollution degree 3
Degree of protection IP20/IP67
External cable diameter 6.7 mm
Transmission characteristics Cat 5 (IEC 11801:2002), Cat 5e (TIA 568B:2001)
