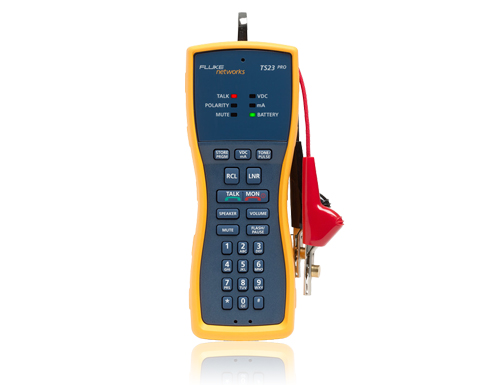

TS® 23 PRO Test Sets

Product Highlights

A standard voice, data and video telephone test set

Four testing functions include:

Voltage indication – identifies potential line problems
Current (mA) indication – verifies sufficient line current
Detects dial tone, places and receives calls
Polarity

Read Brochure

Read Datasheet

PRODUCT NAVIGATION

Overview

The TS®23 PRO gives voice, data and video technicians and communication service provider technicians all the functionality needed in a telephone test set while offering unbeatable reliability, durability and expanded utility. The TS23 PRO performs four essential tests and includes our RainSafe™, DropSafe™ and DataSafe™ technology all in our newly-designed, ruggedly-built case.

Features

TS23 PRO Features

Four Testing Functions Include:

Voltage indication – identifies potential line problems
Current (mA) indication – verifies sufficient line current
Detects dial tone, places and receives calls
Polarity

Additional Features:

DropSafe™ PRO – passed 20-foot drop test onto concrete
RainSafe™ PRO – protection for extreme weather conditions
DataSafe™ PRO – prevents disruption of data transmission on the line
Two-way, hands-free speakerphone
Low battery and mute indication
Optional headset

Models & Accessories

Models

TS23-A-09

TS23, ABN with Piercing Pin

TS23-P-01

TS23, Piercing Pin

TS23-BANA

TS23, 4 MM Banana, Extra-large Alligator Clips and Test Probe

Accessories

BELTCLIP-TS

Belt Clip

LEAD-PIRC-PIN

Test Leads with Piercing Pin Clips

LEAD-CO-346A

Test Leads with a 346A Plug for the Central Office1

LEAD-ABN-PPIN

Test Leads with Angled Bed-of-Nails (ABN) and Piercing Pin Clips

LEAD-ALIG-CLP

Test Leads with Alligator Clips

LEAD-ABNPRJ11

Test Leads with an RJ-11 Plug, Angled Bed-of-Nails (ABN), and Piercing Pin Clips

LEAD-BANA-CLP

Test Leads with a 4 mm Banana Plug, Alligator Clips, and Test Probe

Specifications

Electrical

Current Range (Off-Hook)

10 mA to 100 mA

DC Resistance

Off-Hook

150 Ω nominal

On-Hook

>3 M Ω

AC Impedance

Off-Hook

600 Ω nominal; 300 Hz to 3400 Hz

On-Hook

>120 kΩ 300 Hz to 3400 Hz

Headset impedance

32 Ω

Rotary Dial Output

Pulsing Rate

10 pps ±1 pps

Break/Make Ratio

60/40

Interdigit Interval

>300 ms

Resistance During Break

>100 kΩ

DTMF Output

Tone Frequency Error

±1.5 % maximum

Tone Level

-3 dBm combined (typical)

High versus Low Tone Difference

2 dB ± 2 dB

Speed Dialing

Memory Capacity

9 speed dial memories of 23 digits, plus one last number redial memory

Digit Capacity

23 digits per memory

PBX Pause Duration

4 seconds

Hook Flash Duration

User programmable; default of 500 ms

Automatic Shut Off Duration

User programmable; default of 2 minutes

Power

Battery type

9 V alkaline battery

Physical

Dimensions

8.3 in x 3.2 in x 2.6 in (211 mm x 81 mm x 66 mm) (without belt)

Weight

1.16 lb (0.53 kg) (without belt clip)

Water Resistance

The test set is rain and moisture resistant and IP64 rated

Environmental Temperature Range

Handset speech and dialing functions

-22°F to 140 °F (-30°C to 60°C)

LCD function

-13°F to 140°F (-25°C to 60°C)

Storage

-22°F to 150°F (-30°C to 66°C)

Altitude

To 10,000 ft. (3,000 m) max

Relative Humidity

95% to 30°C
75% to 40°C
45% to 50°C
30% to 60°C

Safety

Regulatory compliance

Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC 61010-1:2010 for measurement category I, 300 V dc maximum, pollution degree 2

Maximum transient voltage

1500 V

EMC

Complies with EMC EN61326-1

Note: Specifications subject to change without notice.
